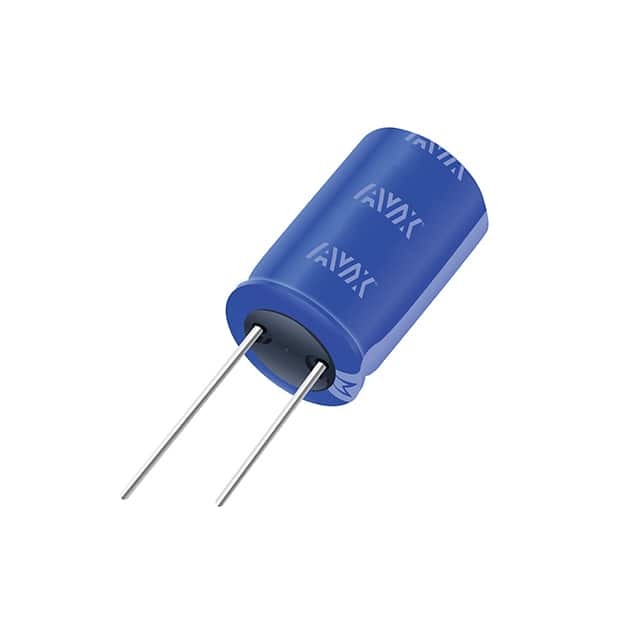

SCCR20B335PRBLE AVX Corp/Kyocera Corp
Same model may have multiple batches, images only for reference.

SCCR20B335PRBLE

Part No SCCR20B335PRBLE
Manufacturer AVX Corp/Kyocera Corp
Catalog Electric Double Layer Capacitors, Supercaps
Datasheet
SCCR20B335PRBLE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr KYOCERA AVX
Series SCC LE
Package Bulk
Capacitance 3.3 F
Tolerance -10%, +30%
Voltage - Rated 2.7 V
ESR (Equivalent Series Resistance) 45mOhm @ 1kHz
Lifetime @ Temp. 1000 Hrs @ 60°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Radial, Can
Lead Spacing 0.118" (3.00mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.846" (21.50mm)
Temperature Range - Operating -40°C ~ 65°C
Other Names 478-12167,SCCR20B335SRBLE,SCCR20B335SRBLE
Standard Package 1,600
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.29.0040
Win Source Part Number 1302772-SCCR20B335PRBLE
Ultra Librarian 3D Model Ultra Librarian SCCR20B335PRBLE CAD Model

Description

The electric double layer capacitor from KYOCERA AVX is an SCC LE series component that is designed for general purpose applications.

  • Capacitance: 3.3F
  • Voltage Rating: 2.7V
  • Tolerance: -10%, +30%
  • ESR (Equivalent Series Resistance): 45mOhm @ 1kHz
  • Package: Radial
  • Dimension: 0.315" Dia (8.00mm)
  • Operating Temperature Range: -40°C to 65°C
  • Height: 0.846" (21.50mm)
  • Lead Spacing: 0.118" (3.00mm)
  • Lead Style: PC Pins
