Same model may have multiple batches, images only for reference.

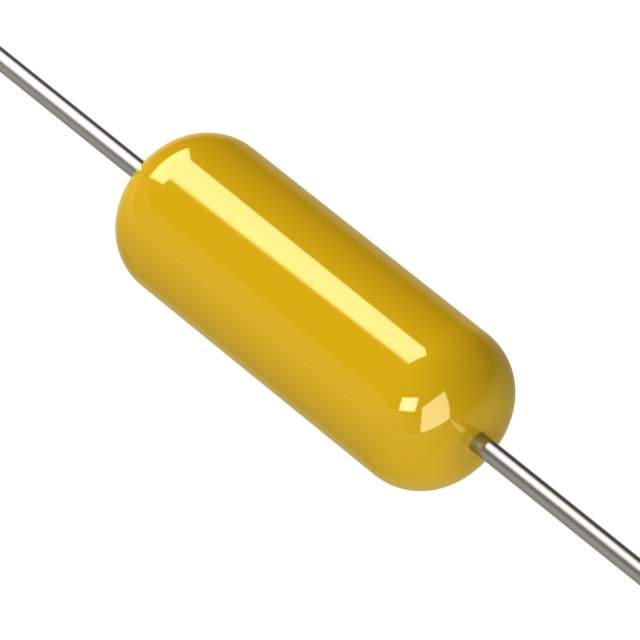

SA405A822JAR Real Image
Same model may have multiple batches, images only for reference.

SA405A822JAR

Part No SA405A822JAR
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SA405A822JAR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SpinGuard® SA
Package Tape & Reel (TR)
Capacitance 8200 pF
Tolerance ±5%
Voltage - Rated 50V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Axial
Dimension 0.150" Dia x 0.400" L (3.81mm x 10.16mm)
Lead Style Straight
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0040
Win Source Part Number 1303759-SA405A822JAR
Ultra Librarian 3D Model Ultra Librarian SA405A822JAR CAD Model

Description

The SpinGuard® SA series ceramic capacitor from Kyocera AVX is an ideal choice for general-purpose applications.

  • Capacitance: 8200 pF
  • Voltage Rating: 50V
  • Tolerance: ±5%
  • Operating Temperature Range: -55°C to 125°C
  • Package/Case: Axial
  • Dimension: 0.150" Dia x 0.400" L (3.81mm x 10.16mm)
  • Temperature Coefficient: C0G, NP0
  • Packaging: Tape & reel (TR)
  • Standard Package: 5,000 pieces
