Same model may have multiple batches, images only for reference.

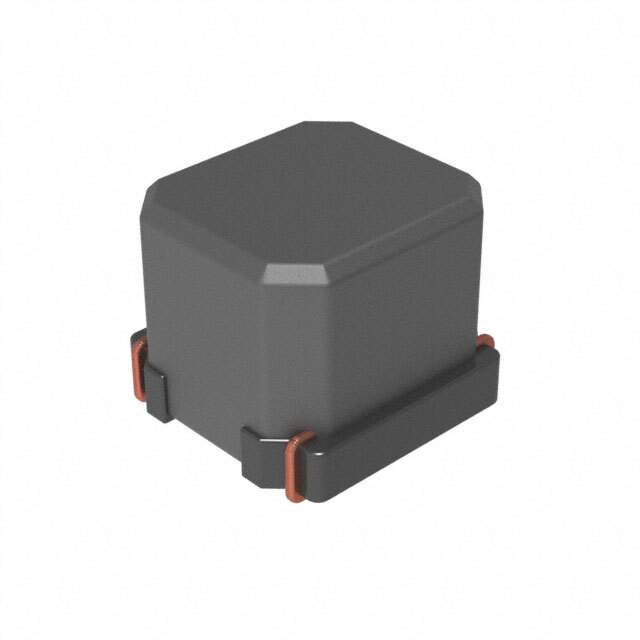

LMLP07C7M4R7DTAS Real Image
Same model may have multiple batches, images only for reference.

LMLP07C7M4R7DTAS

Part No LMLP07C7M4R7DTAS
Manufacturer AVX Corp/Kyocera Corp
Catalog Fixed Inductors
Description FIXED IND 4.7UH 6.5A 30.8MOHM SM / 4.7 µH Shielded Inductor 6.5 A 30.8mOhm Max Nonstandard
Datasheet
LMLP07C7M4R7DTAS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr KYOCERA AVX
Series LMLP
Package Tape & Reel
Material - Core Iron Powder
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 6.5 A
Current - Saturation (Isat) 10A
Shielding Shielded
DC Resistance (DCR) 30.8mOhm Max
Temperature Range - Operating -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Max) 0.197" (5.00mm)
Standard Package 800
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1338644-LMLP07C7M4R7DTAS
Ultra Librarian 3D Model Ultra Librarian LMLP07C7M4R7DTAS CAD Model

Description

The Kyocera AVX LMLP07C7M4R7DTAS is a fixed inductor from.

  • Category: Inductors, Coils, Chokes - Fixed Inductors
  • Inductance: 4.7 µH
  • Tolerance: ±20%
  • Shielding: Shielded
  • Packaging: Tape and Reel
  • Size/Dimension: 0.287" L x 0.260" W (7.30mm x 6.60mm)
  • DC Resistance (DCR): 30.8mOhm Max
  • Current Rating: 6.5 A
  • Core Material: Iron Powder
  • Temperature Range: -55°C ~ 155°C
  • Package/Case: Non-Standard
  • Mounting Type: Surface Mount
