Same model may have multiple batches, images only for reference.

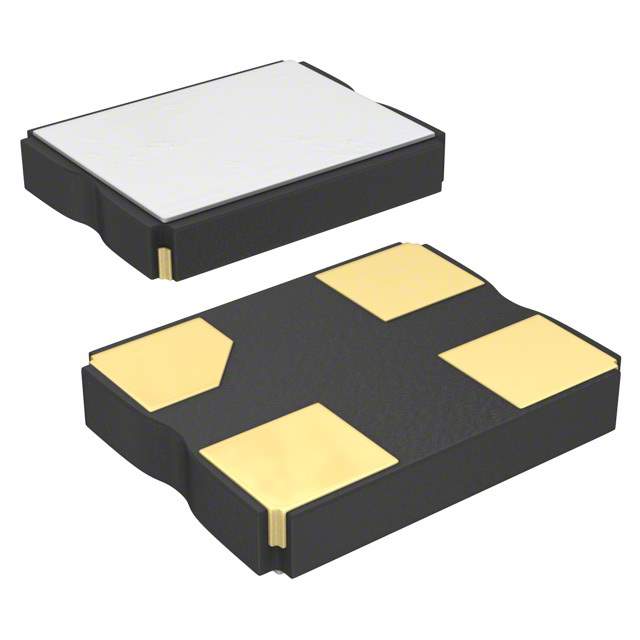

KC2520C26.0000C2LE00 Real Image
Same model may have multiple batches, images only for reference.

KC2520C26.0000C2LE00

Part No KC2520C26.0000C2LE00
Manufacturer AVX Corp/Kyocera Corp
Catalog Oscillators
Description XTAL OSC XO 26.0000MHZ CMOS SMD / 26 MHz XO (Standard) CMOS Oscillator 2.5V, 3.3V Standby (Power Down) 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr KYOCERA AVX
Series KC2520C-C2
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 26 MHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 2.5V, 3.3V
Frequency Stability ±15ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 3.5mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.028" (0.70mm)
Current - Supply (Disable) (Max) 5µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 478-6306-6,478-6306-1-ND,478-KC2520C26.0000C2LE00,478-6306-2,478-6306-2-ND,478-6306-6-ND,478-6306-1,KC2520C260000C2LE00
Standard Package 2,000
Win Source Part Number 1178731-KC2520C26.0000C2LE00
Ultra Librarian 3D Model Ultra Librarian KC2520C26.0000C2LE00 CAD Model

Description

The KYOCERA AVX KC2520C26.0000C2LE00 is a crystal oscillator with a frequency of 26 MHz.

  • Frequency: 26 MHz
  • Frequency Stability: ±15ppm
  • Current Supply: 3.5mA
  • Current Supply (Disable): 5µA
  • Voltage Supply: 2.5V, 3.3V
  • Package: Tape & Reel
  • Mounting Type: Surface Mount Device (SMD)
  • Height Seated: 0.028" (0.70mm)
  • Standard Package: 2,000
  • Temperature Range: -40°C ~ 85°C
  • Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • ECCN: EAR99
  • REACH: Unaffected
  • MSL Level: 1 (Unlimited)
  • Other Names: 478-6306-6, 478-6306-1-ND, 478-KC2520C26.0000C2LE00, 478-6306-2, 478-6306-2-ND, 478-6306-6-ND, 478-6306-1, KC2520C260000C2LE00
