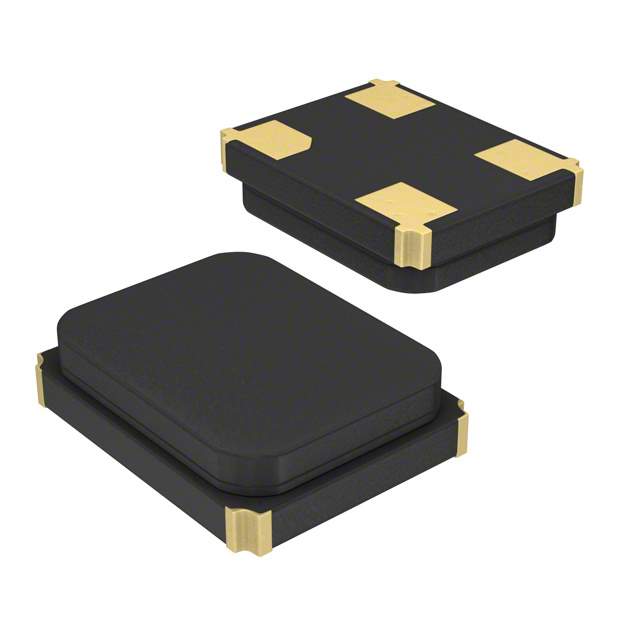

CX3225CA40000D0HSSCC Real Image
Same model may have multiple batches, images only for reference.

CX3225CA40000D0HSSCC

Part No CX3225CA40000D0HSSCC
Manufacturer AVX Corp/Kyocera Corp
Catalog Oscillators
Description CRYSTAL 40.0000MHZ 8PF SMD / 40 MHz ±20ppm Crystal 8pF 100 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Manufacturer KYOCERA AVX
Packaging Reel - TR
Type MHz Crystal
Frequency 40 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±20ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting Surface Mount
Case / Package 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0060
Other Part Number 1254-1148-6-ND,478-CX3225CA40000D0HSSCCCT,478-CX3225CA40000D0HSSCC-ND,1254-1148-1-ND,478-CX3225CA40000D0HSSCC,1253-1148-1-ND,1253-1148-6-ND,1253-1148-2-ND,1253-1148-1,1253-1148-2,1254-1148-1,478-CX3225CA40000D0HSSCCTR,478-CX3225CA40000D0HSSCCDKR,1253-1148-6,1254-1148-6
Standard Package 3,000
Win Source Part Number 1328332-CX3225CA40000D0HSSCC
Ultra Librarian 3D Model Ultra Librarian CX3225CA40000D0HSSCC CAD Model

Description

The KYOCERA AVX CX3225CA40000D0HSSCC is a surface mount MHz crystal from KYOCERA AVX.

  • Frequency: 40 MHz
  • ESR: 100 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 8pF
  • Operating Mode: Fundamental
  • Temperature Range: -40°C to 125°C
  • Case: 4-SMD, no-lead
  • AEC-Q200: Yes
  • REACH Affected: Yes
  • RoHS3 Compliant: Yes
  • Standard Package: 3,000
