Same model may have multiple batches, images only for reference.

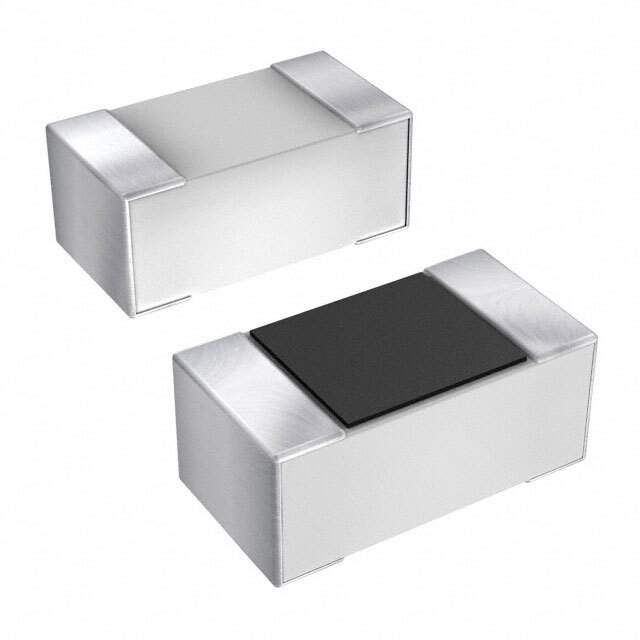

04023J3R3BBWTR Real Image
Same model may have multiple batches, images only for reference.

04023J3R3BBWTR

Part No 04023J3R3BBWTR
Manufacturer AVX Corp/Kyocera Corp
Catalog Thin Film Capacitors
Description CAP THIN FILM 3.3PF 25V 0402 / 3.3 pF Thin Film Capacitor 25 V 0402 (1005 Metric)
Datasheet
04023J3R3BBWTR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Thin Film Capacitors
Manufacturer KYOCERA AVX
Packaging Reel - TR
Capacitance 3.3 pF
Tolerance ±0.1pF
Voltage - Rated 25 V
Mounting Surface Mount
Case / Package 0402 (1005 Metric)
Temperature Range - Operating -55°C ~ 125°C
Features RF, High Q, Low Loss
Size / Dimension 0.039" L x 0.022" W (1.00mm x 0.55mm)
Height - Seated (Max) 0.020" (0.50mm)
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8532.24.0020
Other Part Number 478-2784-1,478-2784-2,478-2784-2-NDR,478-2784-1-NDR
Standard Package 5,000
Win Source Part Number 1330308-04023J3R3BBWTR
Ultra Librarian 3D Model Ultra Librarian 04023J3R3BBWTR CAD Model

Description

The 04023J3R3BBWTR is a thin film capacitor from KYOCERA AVX.

  • Manufacturer: KYOCERA AVX
  • Type: Thin Film Capacitor
  • Packaging: Reel - TR
  • Features: RF, high Q, low loss
  • Capacitance: 3.3 pF
  • Tolerance: ±0.1pF
  • Rated Voltage: 25 V
  • Temperature Range: -55°C ~ 125°C
  • Mounting Type: Surface Mount
  • Case / Package: 0402 (1005 Metric)
