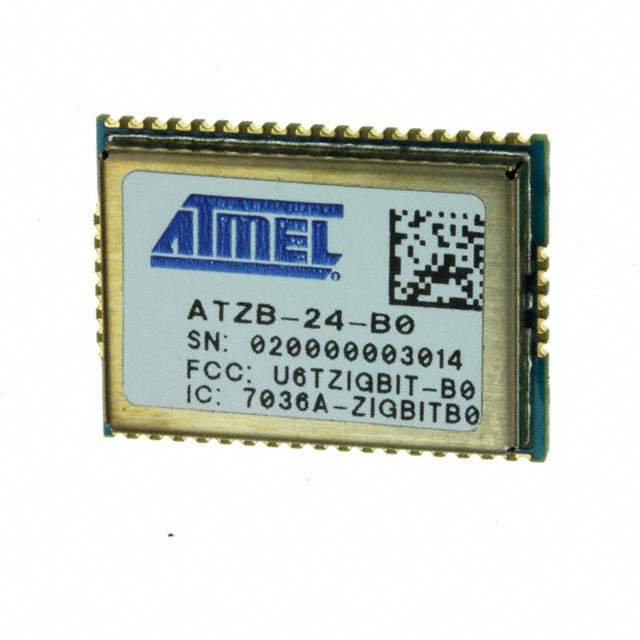

ATZB-24-B0R Real Image
Same model may have multiple batches, images only for reference.

ATZB-24-B0R

Part No ATZB-24-B0R
Manufacturer Atmel
Catalog RF Transceiver Modules
Description RF TXRX MODULE 802.15.4 SMA ANT / 802.15.4/ZigBee SOC 2483.5MHz 250Kbps 48-Pin T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Microchip Technology
Packaging Reel - TR
Status Obsolete(EOL)
RF Family/Standard 802.15.4
Protocol Zigbee
Frequency 2.4GHz
Data Rate 250kbps
Power - Output 3dBm
Sensitivity -101dBm
Serial Interfaces I2C, JTAG, SPI, UART, USART
Antenna Type Not Included, SMA
Memory Size 128kB Flash, 4kB EEPROM, 8kB RAM
Supply Voltage - Operating 1.8 V to 3.6 V
Current - Receiving 21.8mA
Current - Transmitting 20.8mA
Mounting SMD (SMT)
Temperature Range - Operating -20°C to 70°C
Dimension PCB Module
Win Source Part Number 64777-ATZB-24-B0R
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name ATZB-24-B0R
Introduction Date June 26, 2009
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian ATZB-24-B0R CAD Model

Description

Product Overview

The ATZB-24-B0R is a robust wireless communication module, providing seamless connectivity for a wide array of applications. It supports both standard and custom communication protocols.

Applications

  • Wireless sensor networks
  • Smart grid applications
  • Remote monitoring systems
  • Industrial automation

Features and Benefits

  • Long-range wireless communication
  • High data throughput capacity
  • Secure transmission channels

Engineered for reliability, the ATZB-24-B0R ensures stable and efficient data exchange in critical applications.
