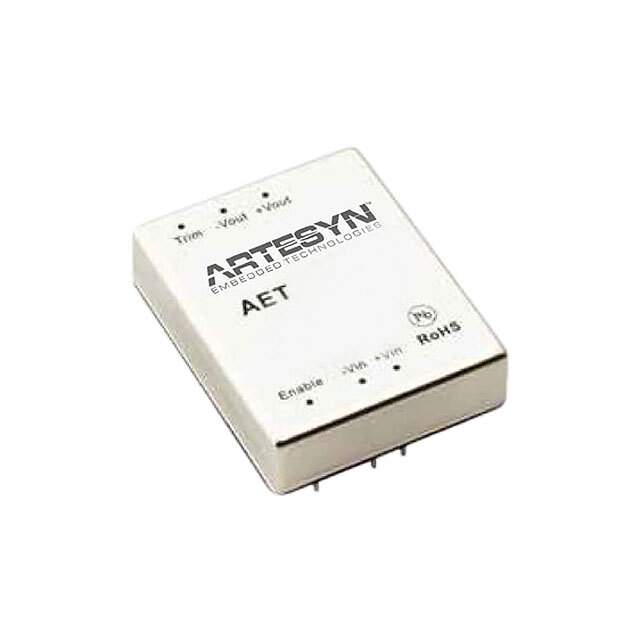

AET00CC36-L Real Image
Same model may have multiple batches, images only for reference.

AET00CC36-L

Part No AET00CC36-L
Manufacturer Artesyn Embedded Technologies
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 20W
Datasheet
AET00CC36-L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Estimated Pruduction Lead Time 15 Weeks
Features Isolated Module DC DC Converter 2 Output 15V -15V - 665mA, 665mA 18V - 75V Input
Manufacturer Artesyn Embedded Technologies
Series AET (20W)
Package Bulk
Operating Temperature Range -40°C ~ 71°C
Mounting Through Hole
Package 7-DIP Module
Family Name AET00CC
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Quantity per package 80
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 860654-AET00CC36-L
Ultra Librarian 3D Model Ultra Librarian AET00CC36-L CAD Model

Description

The AET (20W) series isolated module DC DC converter from Artesyn Embedded Technologies is a 7-DIP module package with a bulk format.

  • Operating Temperature Range: -40°C ~ 71°C
  • Outputs: 15V -15V - 665mA, 665mA 18V - 75V input
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 15 weeks
  • HTSUS: 8504.40.9580 compliant
  • Application: power supply board mount applications
