Same model may have multiple batches, images only for reference.

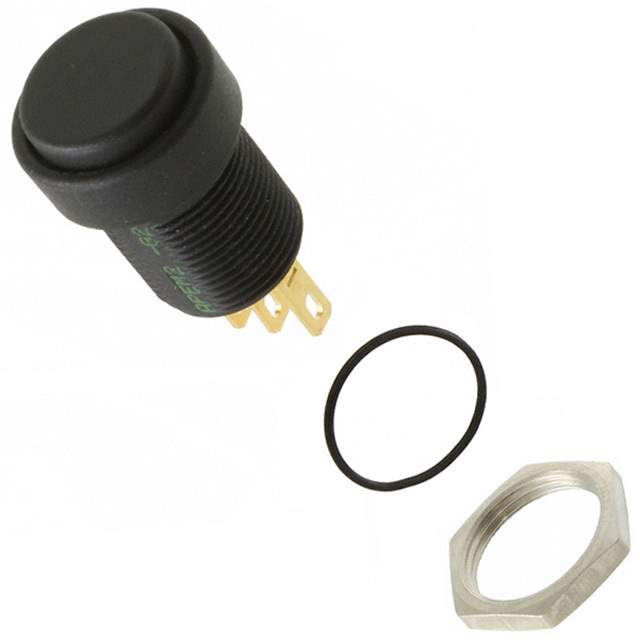

IMP7Z422234 Real Image
Same model may have multiple batches, images only for reference.

IMP7Z422234

Part No IMP7Z422234
Manufacturer Apem Inc.
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 3A 28V / Pushbutton Switch SPDT Standard Panel Mount, Front
Datasheet
IMP7Z422234 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr APEM Inc.
Series IM
Package Bulk
Mounting Type Panel Mount, Front
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (DC)
Voltage Rating - DC 28 V
Actuator Type Round, Button
Actuator Marking No Marking
Color - Actuator/Cap Black
Termination Style Quick Connect - 0.110" (2.8mm)
Ingress Protection IP67 - Dust Tight, Waterproof
Features Epoxy Sealed Terminals
Panel Cutout Dimensions Circular - 13.60mm Dia
Temperature Range - Operating -40°C ~ 85°C
Mechanical Life 1,000,000 Cycles
Electrical Life 25,000 Cycles
Base Product Number IMP7Z
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
California Prop 65 Warning Information
Win Source Part Number 1340853-IMP7Z422234
Ultra Librarian 3D Model Ultra Librarian IMP7Z422234 CAD Model

Description

The IM series pushbutton switch is a standard type of switch manufactured by APEM Inc.

  • Manufacturer: APEM Inc.
  • Series: IM
  • Type: Pushbutton Switch
  • Terminal Type: Epoxy-Sealed
  • Circuit Configuration: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Round Button
  • Actuator Color: Black
  • Mechanical Life: 1,000,000 Cycles
  • Electrical Life: 25,000 Cycles
  • Mounting Type: Panel Mount, Front
  • Panel Cutout: 13.60mm Dia
  • Voltage Rating (DC): 28V DC
  • Current Rating (DC): 3A (DC)
  • Ingress Protection: IP67
  • Operating Temperature: -40°C to 85°C
