Product Overview: HMC648ALP6E - Analog Devices Inc.

The HMC648ALP6E, from Analog Devices Inc., is a high-performance digital attenuator that operates within the frequency range of DC to 6 GHz. This versatile component is designed to provide precise attenuation control in a variety of RF and microwave applications, including wireless infrastructure, test equipment, and military systems.

Key Features

• Frequency Range: The device offers a broad operating frequency range from DC to 6 GHz, making it suitable for a wide array of applications across different frequency bands.
• Attenuation Range: It provides a fine attenuation range of 0.5 dB steps up to 31.5 dB, allowing for precise signal control.
• High Linearity: The HMC648ALP6E boasts excellent linearity over its entire attenuation range, ensuring signal integrity is maintained even at varying levels of attenuation.
• Low Insertion Loss: With its low insertion loss, the attenuator minimizes the impact on the overall signal chain, preserving signal strength and quality.
• Serial Control Interface: The device features a serial control interface for ease of integration into complex systems and for enabling straightforward control via digital signals.

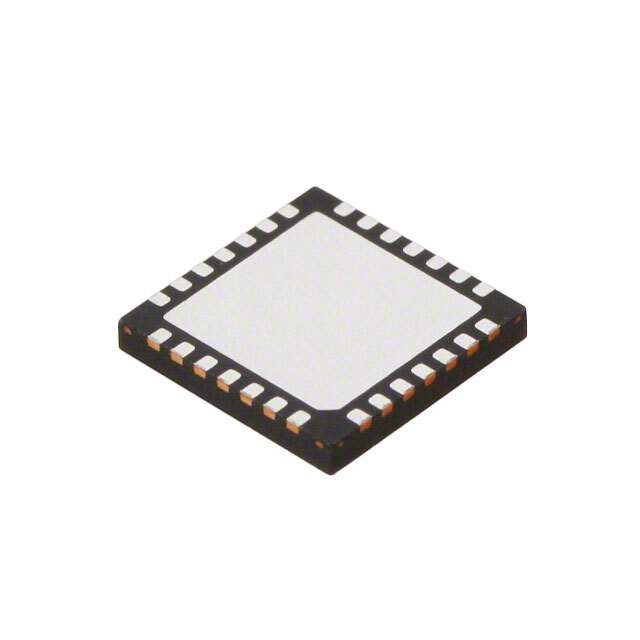

• Compact Package: Housed in a compact 6x6mm QFN package, the HMC648ALP6E is designed for space-constrained applications where size and weight are critical considerations.

Applications

• Wireless Infrastructure
• Cellular/3G & 4G/LTE
• Test and Measurement Equipment
• Military and Space
• Fiber Optics
• Broadband Telecom Equipment

The HMC648ALP6E from Analog Devices Inc. represents the pinnacle of digital attenuator design, offering both performance and reliability for demanding applications where precision and control are paramount. Its integration into RF signal chains ensures that users can achieve the desired signal levels with high accuracy, while maintaining signal fidelity and minimizing system losses.
