ADUM4138WBRNZ: An Advanced Gate Driver by Analog Devices Inc.

The ADUM4138WBRNZ is a cutting-edge, isolated gate driver specifically designed for driving insulated gate bipolar transistors (IGBTs) and silicon carbide (SiC) MOSFETs. Manufactured by Analog Devices Inc., a leader in high-performance semiconductors, this driver is engineered to enhance the efficiency and reliability of high-power conversion systems.

Key Features

• High Isolation Voltage: The ADUM4138WBRNZ offers a reinforced isolation voltage rating of 5 kVrms, providing a robust barrier against high voltage transients and ensuring safe operation in challenging electrical environments.
• Integrated Miller Clamp: To prevent unintended gate turn-on in high dV/dt conditions, this device includes an active Miller clamp feature. This ensures stable operation and enhances the switching performance of the power device.
• Precise Timing Characteristics: The gate driver boasts accurate propagation delays and matched timing, which are crucial for minimizing dead-time and reducing switching losses in power conversion circuits.
• Wide Operating Range: It can operate within a wide range of temperatures, making it suitable for various applications, from industrial to automotive environments.
• Desaturation Detection: The device includes a desaturation detection feature to protect the switch during overcurrent events, contributing to the overall system safety.

Applications

The ADUM4138WBRNZ is ideal for use in a variety of high-power applications, such as:

• Inverters and converters for renewable energy systems
• Motor drives for industrial automation
• Power supplies for server farms and telecommunications
• Electric vehicle (EV) charging stations and onboard chargers

Product Specifications

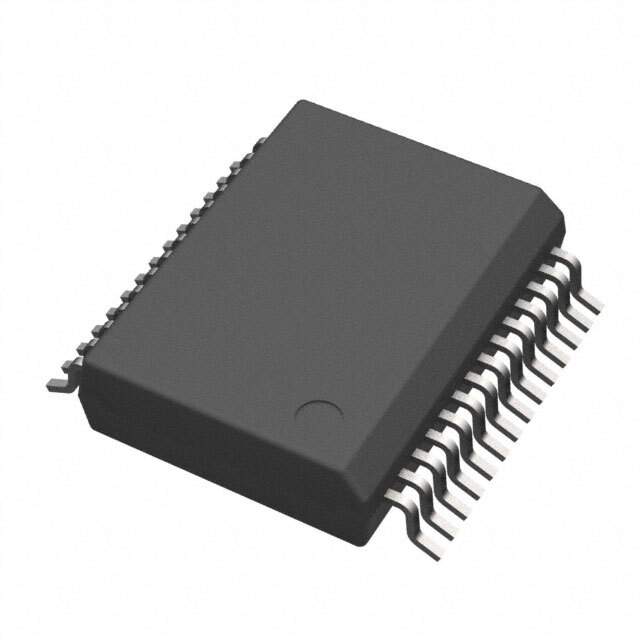

With a compact surface-mount package, the ADUM4138WBRNZ is designed to fit seamlessly into space-constrained applications while delivering high performance. Its specifications include:

• Output Current: 4A peak
• Supply Voltage: Up to 35V
• Common-Mode Transient Immunity: >100 kV/μs
• Operating Temperature Range: -40°C to +125°C

In conclusion, the ADUM4138WBRNZ from Analog Devices Inc. represents a sophisticated solution for driving the latest IGBT and SiC MOSFET technologies, ensuring efficient and reliable operation in high-voltage and high-power electronic systems.
