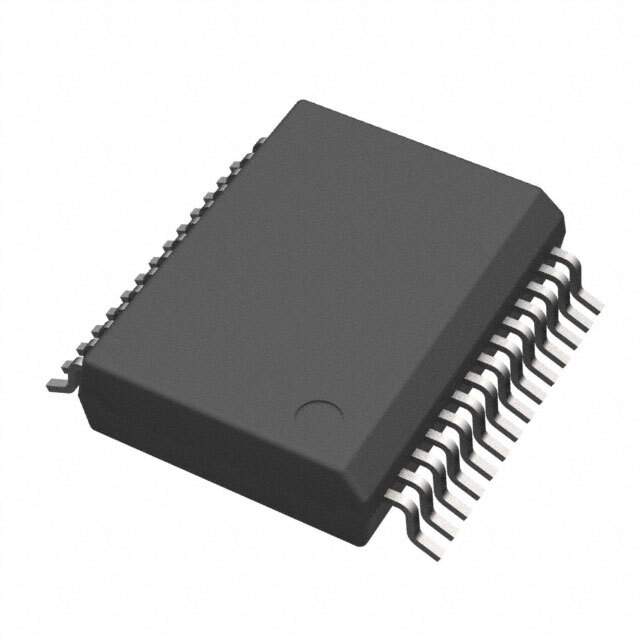

Analog Devices ADUM4137WBRNZ Isolated Gate Driver

The ADUM4137WBRNZ is a sophisticated isolated gate driver designed and manufactured by Analog Devices Inc., which is renowned for its high-performance semiconductor products. This device is specifically engineered to drive insulated-gate bipolar transistors (IGBTs) and silicon carbide (SiC) metal-oxide-semiconductor field-effect transistors (MOSFETs), offering enhanced efficiency and reliability for a wide range of power conversion applications.

Key Features

• Precise Isolation: The ADUM4137WBRNZ provides reinforced galvanic isolation between the input and output, with an isolation voltage rating of 5 kV RMS for 1 minute. This feature ensures safety and protects the low-voltage side from high-voltage transients.
• High-Speed Operation: With fast propagation delays and minimal pulse-width distortion, this gate driver is optimized for switching applications that require quick response times and high-frequency operation.
• Robust Gate Drive: It delivers a robust gate drive with high current output capability, ensuring that the connected IGBT or SiC MOSFET is driven effectively, even under demanding conditions.
• Advanced Protection: Integrated features such as under-voltage lockout (UVLO), Miller clamp, and desaturation detection contribute to the protection of the power device and enhance system reliability.
• Flexible Configuration: The ADUM4137WBRNZ is designed to be flexible, with options for different input control modes and output drive strengths, accommodating a variety of application requirements.

Applications

The ADUM4137WBRNZ is ideal for use in a range of applications that require efficient power conversion and control, including:

• Renewable energy systems such as solar inverters and wind turbine converters
• Industrial motor drives and controls
• Power supplies and power factor correction (PFC) circuits
• Electric vehicle (EV) charging stations and onboard chargers
• Uninterruptible power supplies (UPS)

With its advanced features and reliable performance, the ADUM4137WBRNZ from Analog Devices Inc. is a top choice for designers looking to optimize their power electronic systems. Its robustness and versatility make it a key component in driving the next generation of efficient, high-performance power conversion solutions.
