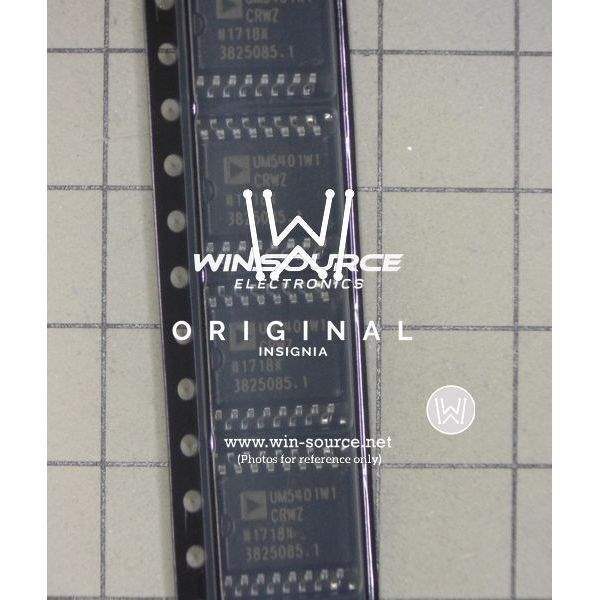

ADUM5401WCRWZ-1RL Digital Isolator by Analog Devices Inc.

The ADUM5401WCRWZ-1RL is a robust, high-performance digital isolator manufactured by Analog Devices Inc., designed to offer outstanding signal isolation for a wide range of applications. This component is part of the ADuM540x series, which are quad-channel digital isolators with integrated dc-to-dc converters. The ADUM5401WCRWZ-1RL model, in particular, provides reliable isolation for systems that require the separation of grounds or need to protect sensitive circuits from high voltages and noise.

Constructed with Analog Devices' iCoupler® technology, the ADUM5401WCRWZ-1RL ensures that digital signals are transmitted across an isolation barrier safely and efficiently. This technology employs magnetic coupling through a chip-scale transformer, unlike optocouplers that rely on light transmission. As a result, the device offers several advantages over traditional optocouplers, including improved reliability, longer service life, and lower power consumption.

The integrated dc-to-dc converter within the ADUM5401WCRWZ-1RL simplifies power supply design by providing regulated, isolated power, eliminating the need for separate isolated power supplies. This feature can save board space and reduce the complexity of the overall design. Additionally, the converter is capable of delivering up to 500 mW of output power, making it suitable for powering multiple downstream devices.

Key features of the ADUM5401WCRWZ-1RL include:

• Quad-channel isolation
• Integrated isoPower® dc-to-dc converter
• High data rate: Up to 10 Mbps
• High temperature operation: -40°C to +125°C
• 16-lead SOIC wide body package
• Regulatory approvals: UL, CSA, VDE certifications

Applications for this digital isolator are diverse and include industrial automation, motor control systems, medical equipment, and power supplies where isolation is critical for safety and performance. The ADUM5401WCRWZ-1RL is able to withstand harsh industrial environments and can be used in systems that require long-term reliability.

With its combination of high-speed data transfer, integrated power isolation, and robust design, the ADUM5401WCRWZ-1RL from Analog Devices Inc. is an excellent choice for designers seeking a high-quality isolation solution for their electronic systems.
