ADIS16204/PCBZ - High-Accuracy, Dual-Axis Digital Inclinometer

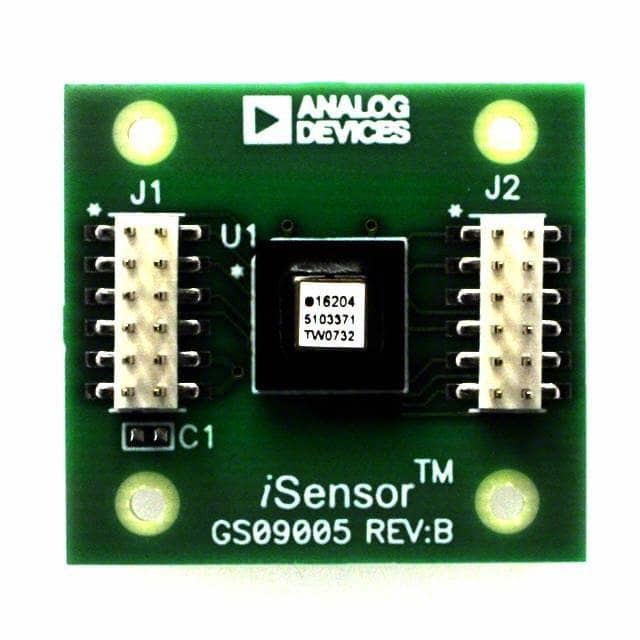

The ADIS16204/PCBZ is a state-of-the-art, dual-axis digital inclinometer module from Analog Devices Inc., designed for precision tilt sensing applications. Encapsulated in a compact and robust package, this sensor provides high-accuracy angle measurement capabilities, making it an ideal choice for industrial, automotive, and instrumentation markets.

Key Features

• High Precision Measurement: The ADIS16204/PCBZ offers excellent accuracy in tilt measurements, with factory calibration ensuring reliable and consistent performance.
• Dual-Axis Sensing: Capable of sensing both pitch and roll angles, this inclinometer provides comprehensive data for multi-dimensional monitoring.
• Digital Output: It features a digital SPI-compatible serial interface, facilitating easy integration with microcontrollers and reducing system complexity.
• Programmable Operation: Users can configure sampling rates, filters, alarms, and power management settings to suit specific application requirements.
• Robust Design: The ADIS16204/PCBZ is designed to withstand harsh environments, making it suitable for outdoor and rugged applications.

Applications

• Platform stabilization and control
• Antenna alignment
• Vehicle dynamics and rollover detection
• Industrial machine control
• Precision instrumentation

Technical Specifications

• Measurement Range: ±80 degrees
• Resolution: 0.025 degrees
• Nonlinearity: <0.1% of full range
• Supply Voltage: 3.3 V typical
• Operating Temperature Range: -40°C to +85°C
• Shock Resistance: 2000 g

With its compact PCB form factor, the ADIS16204/PCBZ is easily mountable and can be quickly deployed in a wide range of systems. Whether it's for precise leveling, tilt-sensing in rugged terrains, or real-time angle monitoring in delicate instrumentation, the ADIS16204/PCBZ by Analog Devices Inc. stands out as a reliable and high-performance solution.
