The ADG1411WBCPZ-REEL from Analog Devices Inc. is a high-performance, monolithic CMOS device comprising four independently selectable single-pole, single-throw (SPST) switches. This component is part of a series renowned for its reliability and cutting-edge performance in switch and multiplexer designs. It is commonly used in applications that require precise and reliable switching, such as data acquisition systems, instrumentation, communication systems, and process control.

Key Features

• Low On-Resistance: The device features an on-resistance (R_ON) typically in the range of 0.8 ohms, which ensures minimal signal attenuation and power loss when the switch is in the 'on' state.
• Low On-Resistance Flatness: On-resistance flatness is a critical parameter that affects signal distortion, and the ADG1411WBCPZ-REEL excels with a very flat R_ON across the full signal range, ensuring signal integrity.
• Single Supply Operation: It is capable of operating from a single 3 V to 5 V power supply, making it suitable for a variety of applications that require low power consumption.
• Fast Switching Times: The switch transition times (t_ON and t_OFF) are in the nanosecond range, facilitating high-speed operation which is essential for critical applications.
• Extended Temperature Range: This device is designed to perform reliably in a wide temperature range, making it suitable for industrial and automotive applications.
• ESD Protection: Enhanced electrostatic discharge (ESD) protection is built into the device, which safeguards it against damage from static electricity and makes it robust for use in harsh environments.
• Lead-Free and RoHS Compliant: The product is available in a lead-free, RoHS-compliant package, ensuring environmental compliance for global use.

Applications

The versatility of the ADG1411WBCPZ-REEL makes it an excellent choice for a wide array of applications including:

• Automatic Test Equipment (ATE)
• Data Acquisition Systems
• Sample Hold Systems
• Audio and Video Switching
• Process Control and Automation

Package and Availability

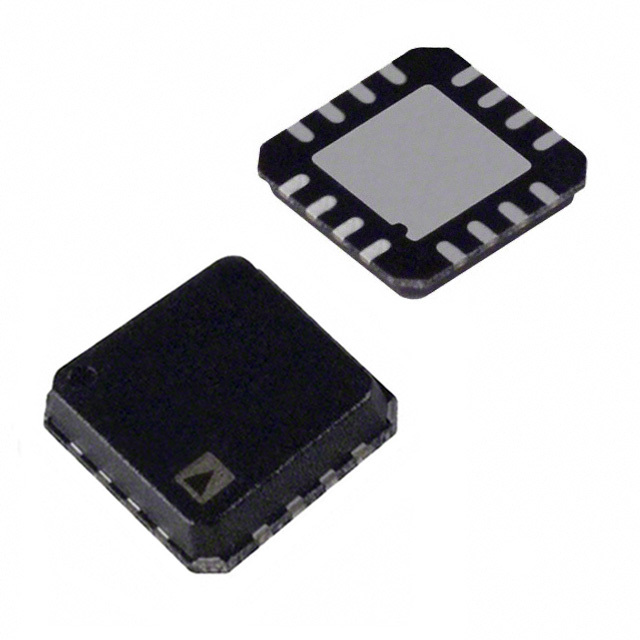

The ADG1411WBCPZ-REEL switch is offered in a compact LFCSP (Lead Frame Chip Scale Package) which is ideal for space-constrained applications. It is available in tape and reel format to facilitate efficient handling and manufacturing assembly processes.
