Product Overview: AD9054ABSTZ-135 by Analog Devices Inc.

The AD9054ABSTZ-135 is a high-performance, 8-bit analog-to-digital converter (ADC) developed by Analog Devices Inc., a leading company in the semiconductor industry. This ADC is designed to operate at a conversion rate of up to 135 mega samples per second (MSPS), making it an ideal choice for demanding applications that require high-speed data acquisition and processing.

With its advanced design and cutting-edge technology, the AD9054ABSTZ-135 provides excellent dynamic performance, including a high signal-to-noise ratio (SNR) and low distortion, which are critical for maintaining the integrity of the converted digital signal. This makes the product a perfect fit for a variety of applications, such as digital oscilloscopes, radar systems, communication systems, and medical imaging equipment.

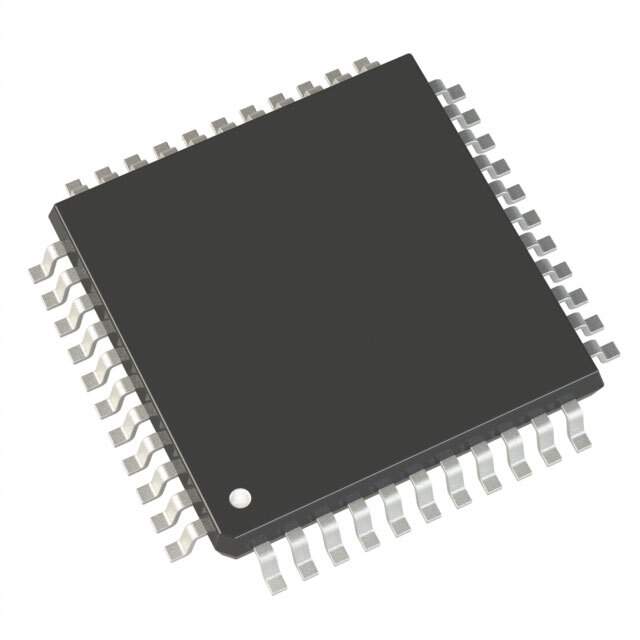

The device comes in a compact 48-lead LQFP (Low-profile Quad Flat Package) with the part number suffix 'BSTZ', ensuring it is suitable for space-constrained applications while offering ease of integration into system designs. The package is designed to facilitate efficient thermal management and reliable operation over a wide temperature range.

Key features of the AD9054ABSTZ-135 include:

• 8-bit resolution with a maximum sampling rate of 135 MSPS
• Excellent dynamic performance with high SNR and low distortion
• On-chip reference voltage and track-and-hold circuit
• Single 5 V power supply operation
• Programmable clock and data alignment
• Edge-triggered or level-sensitive input clock modes
• Power-down and sleep modes for reduced power consumption

The ADC also features a user-friendly interface that supports both CMOS and TTL logic levels, along with an adjustable input range to accommodate various signal amplitudes. The device's digital error correction logic ensures data accuracy, and its built-in test pattern generation capability aids in system verification and debugging.

In summary, the AD9054ABSTZ-135 from Analog Devices Inc. is a robust and versatile ADC solution that delivers high-speed performance with a focus on signal fidelity and reliability. It is an excellent choice for designers looking to enhance the capabilities of their high-speed signal processing systems.
