AD5363BCPZ - Octal, 16-Bit DAC from Analog Devices Inc.

The AD5363BCPZ is a highly integrated digital-to-analog converter (DAC) solution from Analog Devices Inc., renowned for precision and performance. Designed to deliver exceptional accuracy and stability, this octal, 16-bit DAC is an ideal choice for advanced industrial, communication, and medical applications that demand high-resolution analog output.

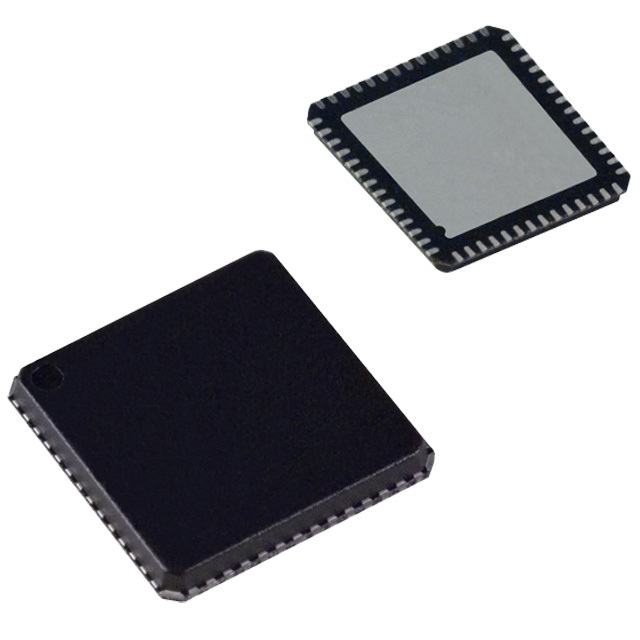

This device features eight individual DACs in one compact 48-lead LFCSP (7 mm × 7 mm) package, offering a space-saving solution without compromising on functionality or performance. Each DAC channel can be independently programmed using a versatile 3-wire serial interface that is compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards, providing ease of integration with a broad range of microcontrollers and digital systems.

The AD5363BCPZ operates from a single 2.7 V to 5.5 V supply, and its outputs can be configured to provide a bipolar voltage output range through the use of an external reference voltage and a flexible output amplifier stage. This flexibility allows designers to tailor the output range to meet specific application requirements, such as providing a ±10 V output for industrial control systems or a more precise range for medical instrumentation.

With an impressive integral nonlinearity (INL) of ±2 LSB maximum and a low temperature coefficient of 5 ppm/°C, the AD5363BCPZ ensures high fidelity and repeatability of the analog signals it generates. This precision is maintained over the full operating temperature range of -40°C to +85°C, making it a reliable choice for demanding environments.

Additional features include a power-on reset to zero-scale or midscale, a clear function to user-selectable codes, an on-chip reference with low temperature coefficient, and per-channel power-down capability. These features contribute to the ease of use and power efficiency of the AD5363BCPZ, making it a versatile component for power-sensitive applications.

In summary, the AD5363BCPZ from Analog Devices Inc. is a high-performance, octal, 16-bit DAC that offers design flexibility, ease of integration, and precision output for a wide range of applications. Its robust feature set and compact form factor make it an excellent choice for designers seeking to optimize their analog output capabilities in space-constrained environments.
