Product Overview: AD4116BCPZ-RL7 from Analog Devices Inc.

The AD4116BCPZ-RL7 is a high-performance, multifunctional analog-to-digital converter (ADC) from the esteemed manufacturer Analog Devices Inc. This precision ADC is designed to cater to a wide array of applications, including industrial data acquisition, medical instrumentation, and process control systems.

At the heart of the AD4116BCPZ-RL7 is a 24-bit sigma-delta (Σ-Δ) ADC that offers exceptional accuracy and noise performance, making it ideal for measuring small signal amplitudes in high-resolution systems. The device features a flexible input multiplexer (mux) that can handle up to 16 single-ended channels or 8 differential channels, providing versatility in connecting various sensors and inputs.

The integrated, low-noise programmable gain amplifier (PGA) allows for signal amplification up to 128 times, which is crucial when dealing with low-level signals. This feature, along with the onboard reference and reference buffer, ensures stable and reliable measurements even in fluctuating conditions.

One of the key benefits of the AD4116BCPZ-RL7 is its ease of use. The device supports SPI communication, enabling straightforward interfacing with microcontrollers and digital systems. Additionally, it is equipped with several diagnostic features that help detect issues such as overvoltage, undervoltage, and open-circuit conditions, thereby enhancing system reliability and safety.

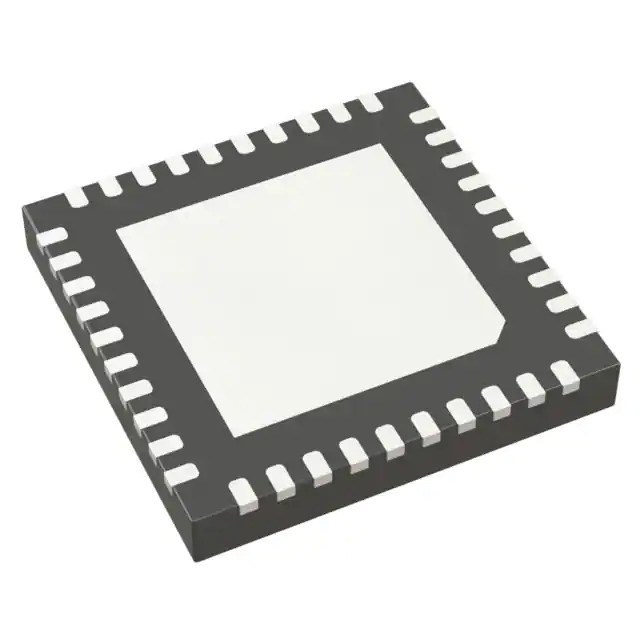

The ADC operates over a wide supply range of 4.75 V to 5.25 V, and its specified operating temperature ranges from -40°C to +105°C, ensuring consistent performance across diverse environments. The compact, 40-lead LFCSP (lead frame chip scale package) makes it suitable for space-constrained applications.

In summary, the AD4116BCPZ-RL7 ADC from Analog Devices Inc. is a robust and precise component that combines multiple functionalities into a single chip, streamlining the design of complex systems and ensuring high-fidelity data conversion for critical applications.
