Same model may have multiple batches, images only for reference.

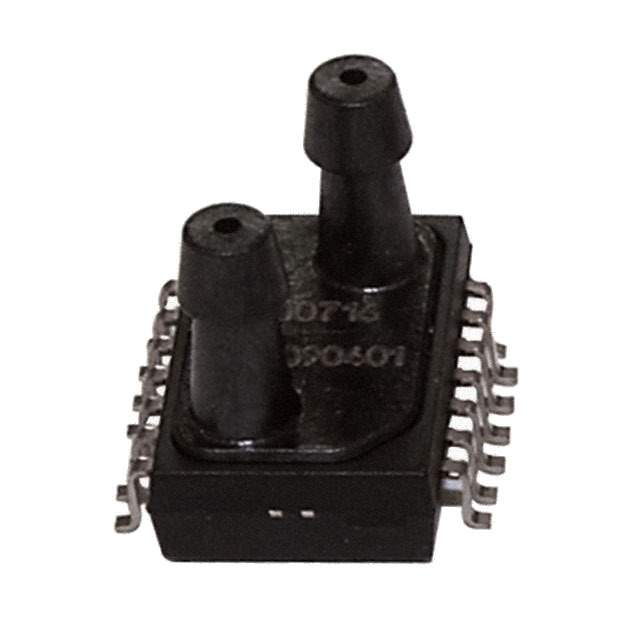

NPA-500B-030D Real Image
Same model may have multiple batches, images only for reference.

NPA-500B-030D

Part No NPA-500B-030D
Manufacturer Amphenol
Catalog Pressure Sensors, Transducers
Description SENSOR 30PSID 0.12" 4.5V / Pressure Sensor 30PSI (206.84kPa) Differential Male - 0.12" (3mm) Tube, Dual 0.5 V ~ 4.5 V 14-SOIC Module, Top Port
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Amphenol NovaSensor
Series NPA-500
Package Tape & Reel
Applications Board Mount
Pressure Type Differential
Operating Pressure 30PSI (206.84kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±1.5%
Voltage - Supply 4.75V ~ 5.25V
Port Size Male - 0.12" (3mm) Tube, Dual
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style Gull Wing
Maximum Pressure 60PSI (413.69kPa)
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 14-SOIC Module, Top Port
Base Product Number NPA-500B
Standard Package 100
MSL Level 5A (24 Hours)
ECCN EAR99
HTSUS 9026.20.8000
Win Source Part Number 1339753-NPA-500B-030D
Ultra Librarian 3D Model Ultra Librarian NPA-500B-030D CAD Model

Description

The NPA-500B-030D is a pressure sensor from Amphenol NovaSensor that is designed to provide accurate and reliable pressure sensing.

  • Features: Amplified Output and Temperature Compensation
  • Pressure Type: Differential
  • Maximum Pressure: 60PSI
