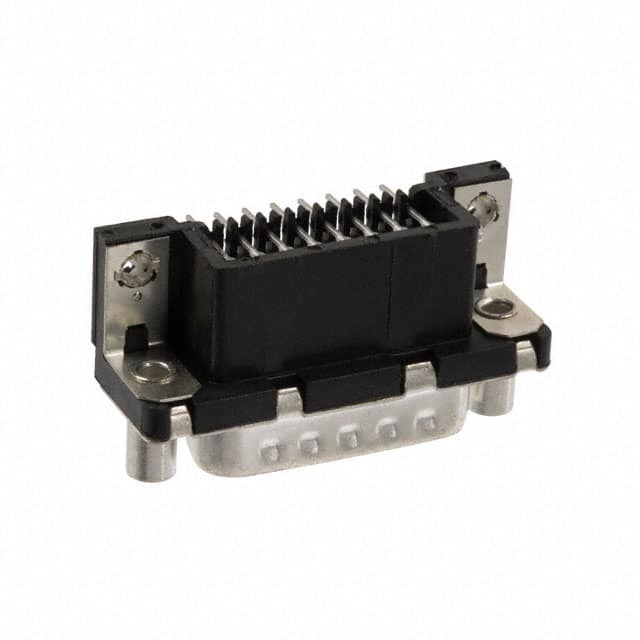

D15P13A4GV00LF
Same model may have multiple batches, images only for reference.

D15P13A4GV00LF

Part No D15P13A4GV00LF
Manufacturer Amphenol
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 15POS R/A SLDR / 15 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Amphenol
Series Delta D
Package Tray
Product Status Active
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 15
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin-Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A per Contact
Backset Spacing 0.409" (10.40mm)
Features Board Lock, Grounding Indents, Mounting Brackets
Voltage Rating 300V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Brass
Temperature Range - Operating -55°C ~ 125°C
Base Product Number D15P13
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 916636-D15P13A4GV00LF
Ultra Librarian 3D Model Ultra Librarian D15P13A4GV00LF CAD Model

Description

The Amphenol 916636-D15P13A4GV00LF is a D-Sub Connector Assembly with a plug and male pins configuration.

  • Positions: 15
  • Features: Board Lock, Grounding Indents, Mounting Brackets
  • Connector Material: Brass
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Mounting: Through-Hole, Right-Angle
  • Temperature Range: -55°C to 125°C
  • Shell Material: Steel
  • Shell Finish: Tin-Nickel Plated
  • Voltage Rating: 300V
  • Package: Tray
  • Series: Delta D
  • Status: Active
  • REACH: Unaffected
