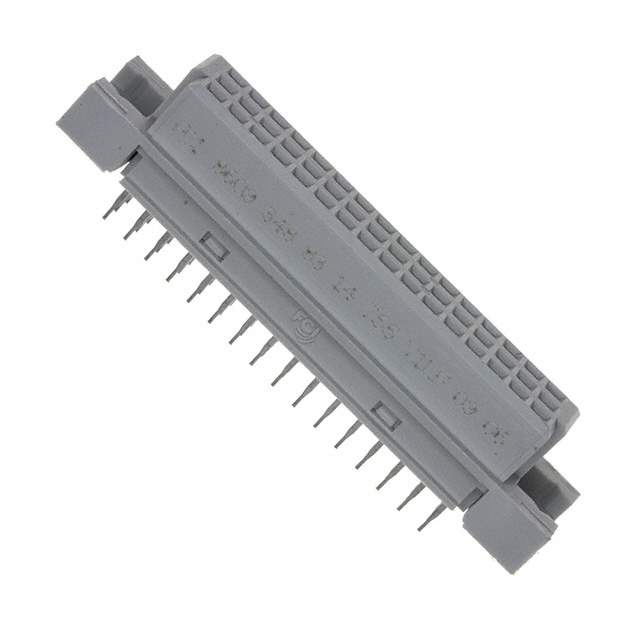

86093488314755V1LF Real Image
Same model may have multiple batches, images only for reference.

86093488314755V1LF

Part No 86093488314755V1LF
Manufacturer Amphenol
Catalog Backplane Connectors
Description CONN DIN RCPT 48POS PCB GOLD / 48 Position Din Connector Receptacle, Female Sockets Gold Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors>DIN 41612
Manufacturer Amphenol ICC (FCI)
Packaging Tube
Connector Type Receptacle, Female Sockets
Number of Positions 48
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style C/2 (1/2 C)
Level, Class 2
Mounting Through Hole
Termination Solder
Contact Finish Gold
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) 1.5A
Material Flammability Rating UL94 V-0
Material - Insulation Polyester Thermoplastic
Base Product Number 8609348831
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 609-3449,2266-86093488314755V1LF
Standard Package 16
Win Source Part Number 1333109-86093488314755V1LF
Ultra Librarian 3D Model Ultra Librarian 86093488314755V1LF CAD Model

Description

The Amphenol ICC (FCI) 1333109-86093488314755V1LF is a 48-position receptacle connector with female sockets.

  • Pitch: 0.100" (2.54mm)
  • Positions Loaded: All
  • Insulation Material: Polyester Thermoplastic
  • Flammability Rating: UL94 V-0
  • Mounting Style: Through-Hole
  • Style: C/2 (1/2 C)
  • Current Rating: 1.5A
  • Temperature Range: -55°C to 125°C
  • RoHS Compliant: Yes
  • REACH Affected: Yes
