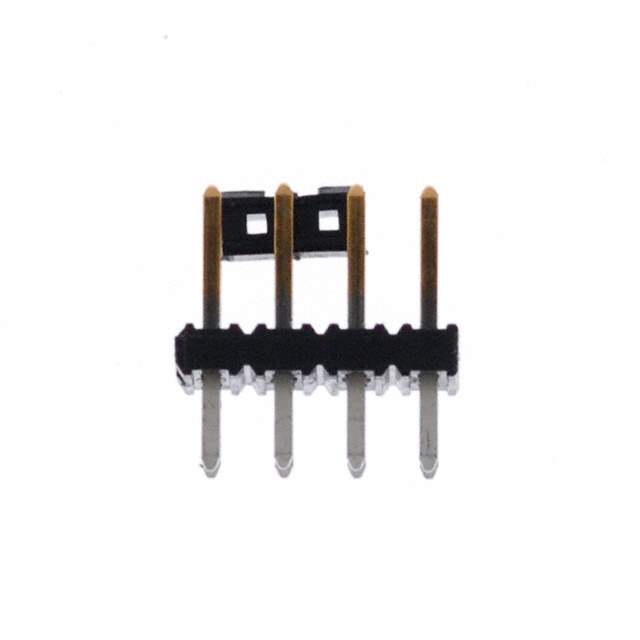

57102-G06-04LF Real Image
Same model may have multiple batches, images only for reference.

57102-G06-04LF

Part No 57102-G06-04LF
Manufacturer Amphenol
Catalog Circular Connectors - Housings
Description CONN HEADER VERT 8POS 2MM / Connector Header Through Hole 8 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series Minitek® 2.00mm
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.157" (4.00mm)
Contact Length - Post 0.098" (2.50mm)
Overall Contact Length 0.315" (8.00mm)
Insulation Height 0.059" (1.50mm)
Contact Shape Square
Contact Finish - Mating Gold, GXT™
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2A (AC/DC)
Voltage Rating 200V (AC/DC)
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number 57102
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 57102G0604LF,609-2602,2266-57102-G06-04LF
Standard Package 200
Win Source Part Number 1164055-57102-G06-04LF
Ultra Librarian 3D Model Ultra Librarian 57102-G06-04LF CAD Model

Description

The AMPHENOL 1164055-57102-G06-04LF is a Minitek® 2.00mm series rectangular connector.

  • Series: Minitek® 2.00mm
  • Positions: 8
  • Type: Header
  • Gender: Male
  • Fastening Type: Push-Pull
  • Packaging: Bulk
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Contact Finish (Post): Tin
  • Contact Finish Thickness (Post): 78.7µin (2.00µm)
  • Mounting: Through-Hole
  • Current Rating: 2A (AC/DC)
  • HTSUS: 8536.69.4040
