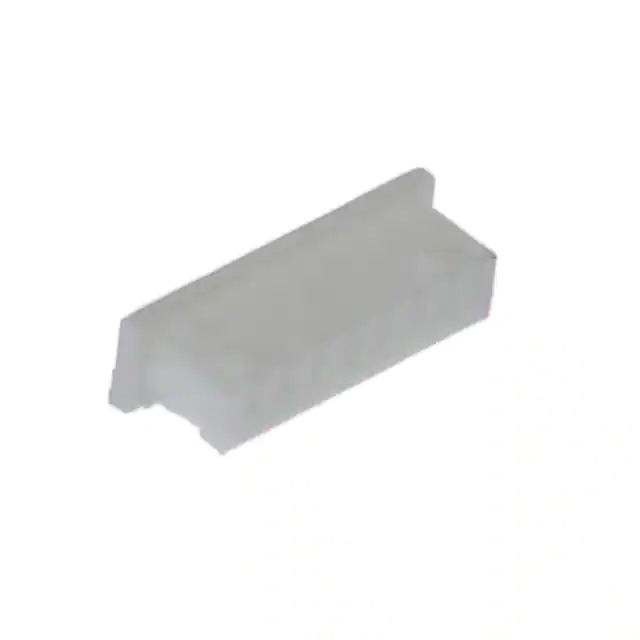

Same model may have multiple batches, images only for reference.

10114826-00008LF

Name: 10114826-00008LF
Brand: Amphenol
SKU: 1365505
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	10114826-00008LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 8POS 1.25MM / 8 Rectangular Connectors - Housings Receptacle Natural 0.049" (1.25mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	Amphenol ICC (FCI)
Series	10114826
Package	Bulk
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	8
Pitch	0.049" (1.25mm)
Number of Rows	1
Row Spacing	-
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	-
Color	Natural
Features	-
Temperature Range - Operating	-40°C ~ 105°C
Note	Contacts Not Included
Base Product Number	10114826
MSL Level	Not Applicable
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8538.90.6000
Win Source Part Number	1365505-10114826-00008LF
Ultra Librarian 3D Model	Ultra Librarian 10114826-00008LF CAD Model

Description

The 10114826-00008LF is a rectangular connector housing manufactured by Amphenol ICC (FCI). It is a receptacle connector with 8 positions and 1 row.

Connector Type: Receptacle
Positions: 8
Rows: 1
Contact Termination: Crimp
Pitch: 0.049" (1.25mm)
Mounting Type: Free Hanging (In-Line)
Color: Natural
Contacts Included?: No
Operating Temperature Range: -40°C to 105°C
Product Status: Active
Series: 10114826
REACH: Compliant
ECCN: EAR99
