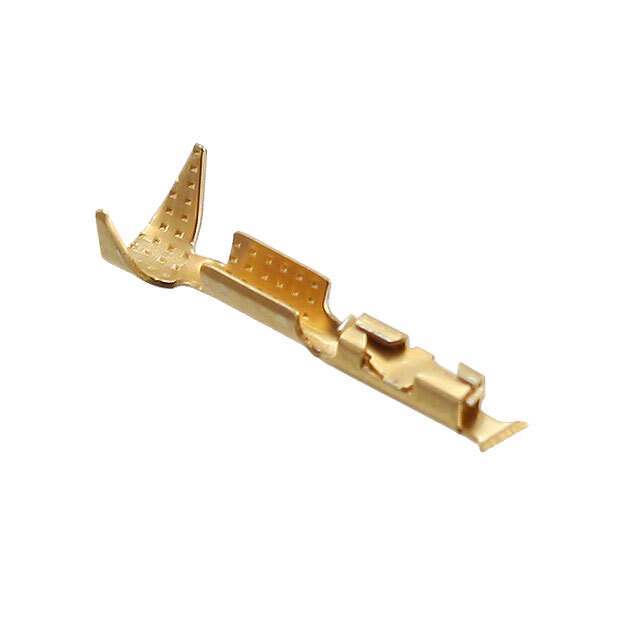

47565-001LF Amphenol ICC (FCI)
Same model may have multiple batches, images only for reference.

47565-001LF

Part No 47565-001LF
Manufacturer Amphenol FCI
Catalog Rectangular Connectors
Description CONN SOCKET 22-26AWG CRIMP GOLD
Datasheet
47565-001LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1307501-47565-001LF
Category Connectors, Interconnects Rectangular Connectors Rectangular Connector Contacts
Manufacturer Amphenol ICC (FCI)
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 22-26 AWG
Contact Finish Gold
Contact Finish Thickness 40.0µin (1.02µm)
Pitch 2.54 mm (0.1 in)
Ultra Librarian 3D Model Ultra Librarian 47565-001LF CAD Model

Description

  • Unique dual-metal Pv receptacle contact
  • Beryllium copper spring
  • Keyed MNl-LATCH housings
  • Brass contact body
  • Choice ofthree different spring pressures
  • Shrouded header side walls engage with the sides of the MINI-LATCH housing
  • .Two wall header design
  • RoHS compliant and lead-free
