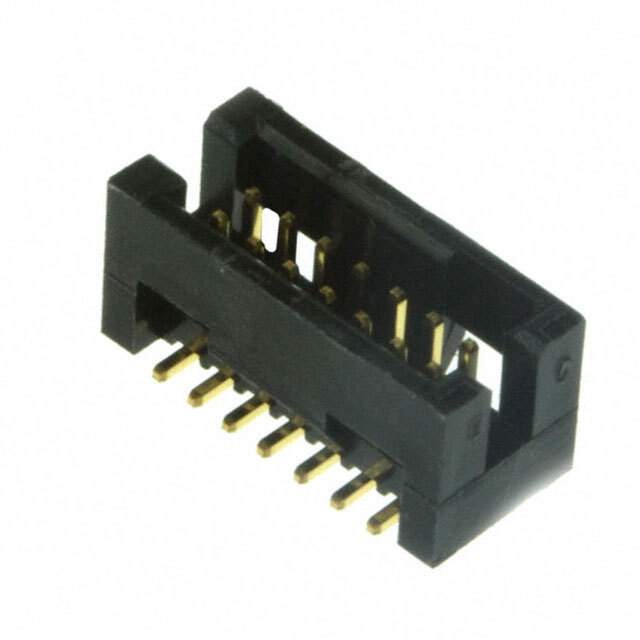

Same model may have multiple batches, images only for reference.

20021221-00214D4LF

Name: 20021221-00214D4LF
Brand: Amphenol FCI
SKU: 805049
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	20021221-00214D4LF
Manufacturer	Amphenol FCI
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 14POS 1.27MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Amphenol ICC (FCI)
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	14
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	13
Style	Board to Board
Shrouding	Shrouded - 4 Wall
Mounting Style	SMD
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.220" (5.60mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0μin (0.25μm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Features	Pick and Place
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	50.0μin (1.27μm)
Manufacturer Pack Quantity	49
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	805049-20021221-00214D4LF
Ultra Librarian 3D Model	Ultra Librarian 20021221-00214D4LF CAD Model

Alternative Products

Description

The Amphenol ICC (FCI) 805049-20021221-00214D4LF is a header connector with 14 positions loaded.

Positions Loaded: 14
Male Pin Contacts: 13
Pitch-Mating: 0.050" (1.27mm)
Design: Shrouded - 4 wall
Contact Material: Copper alloy
Contact Finish-Mating: Gold (10.0μin (0.25μm) thickness)
Termination: Solder
Contact Finish-Post: Tin (50.0μin (1.27μm) thickness)
Insulation Material: Thermoplastic
Insulation Color: Black
Connector Style: Board-to-board
Row Spacing-Mating: 0.050" (1.27mm)
Insulation Height: 0.220" (5.60mm)
Manufacturer Pack Quantity: 49
