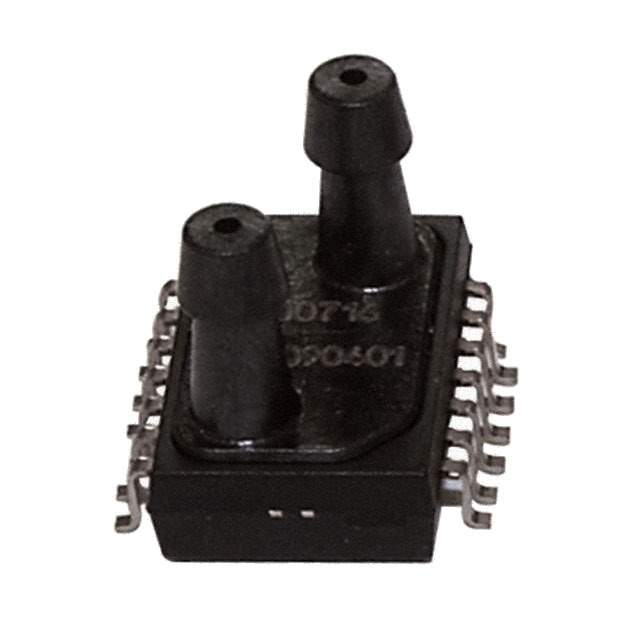

NPA-300B-005G Real Image
Same model may have multiple batches, images only for reference.

NPA-300B-005G

Part No NPA-300B-005G
Manufacturer Amphenol Advanced Sensors
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 5PSI GAUGE SMD / Pressure Sensor 0psi to 5psi Gage 14-Pin SOIC T/R/Tube
Datasheet
NPA-300B-005G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Amphenol Advanced Sensors
Series NPA-300
Pressure Type Vented Gauge
Operating Pressure 5 PSI (34.47 kPa)
Output Type Analog Voltage
Output 2 V ~ 3 V
Accuracy ±1.5%
Operating Supply Voltage 3.135 V ~ 3.465 V
Port Size Male - 0.12" (3mm) Tube, Dual
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style Gull Wing
Maximum Pressure 60 PSI (413.69 kPa)
Operating Temperature Range -40°C ~ 125°C
Package 14-SOIC Module, Top Port
Win Source Part Number 790773-NPA-300B-005G
Popularity Medium
Supply and Demand Status Limited
Family Name NPA-300B-005G
ECCN EAR99
Country of Origin Thailand
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian NPA-300B-005G CAD Model

Description

The Amphenol Advanced Sensors NPA-300B-005G is a vented gauge pressure sensor from Amphenol Advanced Sensors.

  • Pressure: 5 PSI (34.47 kPa)
  • Maximum Pressure: 60 PSI (413.69 kPa)
  • Output Type: Analog Voltage
  • Accuracy: ±1.5%
  • Output Range: 2 V to 3 V
  • Operating Supply Voltage: 3.135 V to 3.465 V
  • Termination Style: Gull Wing
  • Package: 14-SOIC module with a top port
  • Port Style: Male-0.12" (3mm) tube dual port with a barbed port
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Manufacturer Location: Thailand
  • Estimated EOL Date: 2028
