Same model may have multiple batches, images only for reference.

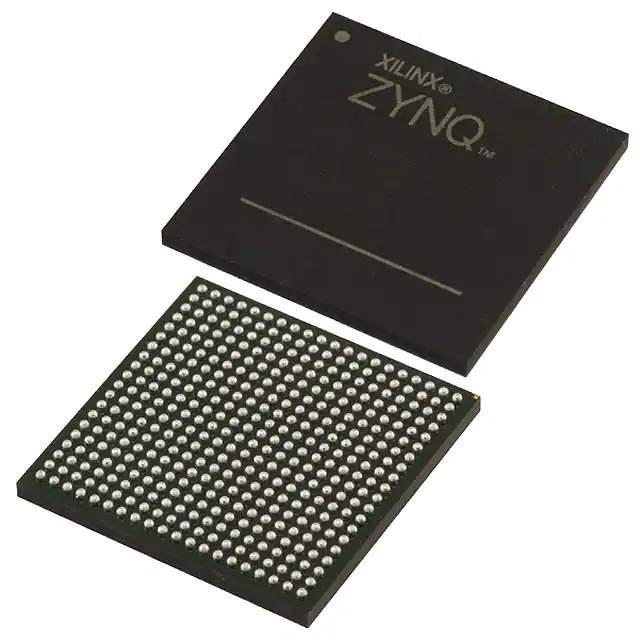

XC7Z014S-2CLG400E Real Image
Same model may have multiple batches, images only for reference.

XC7Z014S-2CLG400E

Part No XC7Z014S-2CLG400E
Manufacturer Amd
Catalog Embedded - System On Chip (SoC)
Description IC SOC CORTEX-A9 766MHZ 400BGA / Single ARM? Cortex?-A9 MPCore? with CoreSight? System On Chip (SOC) IC Zynq?-7000 Artix?-7 FPGA, 65K Logic Cells 766MHz 400-CSPBGA (17x17)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - System On Chip (SoC)
Mfr AMD
Series Zynq®-7000
Package Tray
Product Status Active
Architecture MCU, FPGA
Core Processor Single ARM® Cortex®-A9 MPCore™ with CoreSight™
RAM Size 256KB
Peripherals DMA
Connectivity CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Speed 766MHz
Primary Attributes Artix™-7 FPGA, 65K Logic Cells
Temperature Range - Operating 0°C ~ 100°C (TJ)
Package / Case 400-LFBGA, CSPBGA
Supplier Device Package 400-CSPBGA (17x17)
Number of I/O 125
Base Product Number XC7Z014
Standard Package 90 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Win Source Part Number 845333-XC7Z014S-2CLG400E
Ultra Librarian 3D Model Ultra Librarian XC7Z014S-2CLG400E CAD Model

Description

The XC7Z014S-2CLG400E is an integrated circuit that falls under the category of Embedded System On Chip (SoC).

  • Core Processor: ARM Cortex-A9 MPCore with CoreSight
  • Speed: 766MHz
  • Packaging: Tray
  • Standard Package: 90 pieces
  • Connectivity: CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART
  • Peripherals: DMA
  • Number of I/O: 125
  • RAM Size: 256KB
  • FPGA: Artix-7 with 65K Logic Cells
  • Operating Temperature: 0°C ~ 100°C (TJ)
  • Series: Zynq-7000
