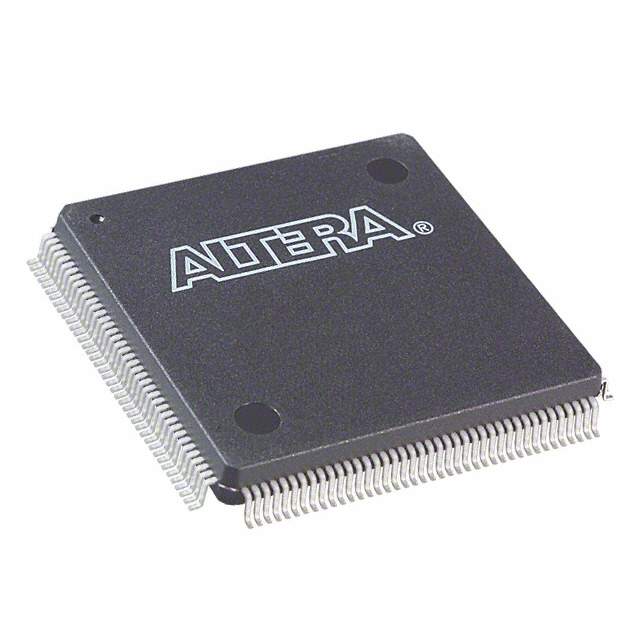

EPM7256EQC160-15 Real Image
Same model may have multiple batches, images only for reference.

EPM7256EQC160-15

Part No EPM7256EQC160-15
Manufacturer Altera
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 256MC 15NS 160QFP / CPLD MAX® 7000 Family 5K Gates 256 Macro Cells 76.9MHz 5V 160-Pin PQFP Tray
Datasheet
EPM7256EQC160-15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series MAX 7000
Packaging Tray
Part Status Obsolete(EOL)
Programmable Type EE PLD
Delay Time tpd(1) Max 15.0ns
Voltage Supply - Internal 4.75 V ~ 5.25 V
Number of Logic Elements/Blocks 16
Number of Macrocells 256
Number of Gates 5000
Number of I/O 132
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting SMD
Package 160-BQFP
Manufacturer Package 160-PQFP (28x28)
Win Source Part Number 774201-EPM7256EQC160-15
Popularity Medium
Supply and Demand Status Limited
Quantity per package 24
Family Name EPM7256E
Introduction Date October 02, 1998
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian EPM7256EQC160-15 CAD Model

Description

The Altera MAX 7000 series is an obsolete integrated circuit (IC) that was introduced in October 1998.

  • I/O Count: 132
  • Gates: 5000
  • Macrocells: 256
  • Maximum Operating Temperature: 0°C to 70°C
  • Power Supply: 4.75V to 5.25V
  • Package: 160-BQFP
  • Part Status: Obsolete (EOL)
