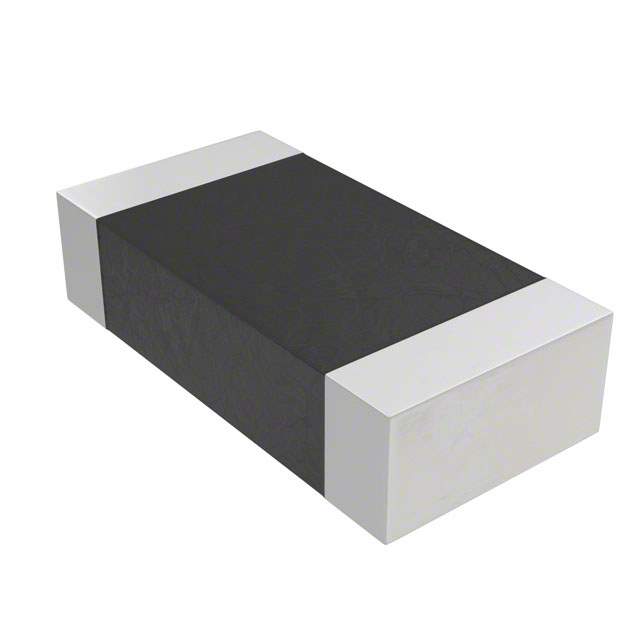

ASMPL-0603-R68M-T Real Image
Same model may have multiple batches, images only for reference.

ASMPL-0603-R68M-T

Part No ASMPL-0603-R68M-T
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description FIXED IND 680NH 900MA 275MOHM SM / 680 nH Unshielded Multilayer Inductor 900 mA 275mOhm Max 0603 (1608 Metric)
Datasheet
ASMPL-0603-R68M-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Abracon LLC
Packaging Reel - TR
Type Multilayer
Material - Core Ceramic
Inductance 680 nH
Tolerance ±20%
Current Rating (Amps) 900 mA
Current - Saturation (Isat) 800mA
Shielding Unshielded
DC Resistance (DCR) 275mOhm Max
Frequency - Self Resonant 100MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.022" (0.55mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 5,000
Win Source Part Number 1327440-ASMPL-0603-R68M-T
Ultra Librarian 3D Model Ultra Librarian ASMPL-0603-R68M-T CAD Model

Description

Abracon LLC Multilayer Inductor is a high-quality electronic component that is designed to provide a reliable and stable inductance of 680 nH.

  • Shielding: Unshielded
  • Mounting: Surface Mount Device (SMD)
  • Packaging: Reel - TR
  • Tolerance: ±20%
  • DC Resistance (DCR): 275mOhm Max
  • Height: 0.022" (0.55mm)
  • Dimension: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Current Rating: 900 mA
  • Frequency Self-Resonant: 100MHz
  • Temperature Range: -40°C to 125°C
