Same model may have multiple batches, images only for reference.

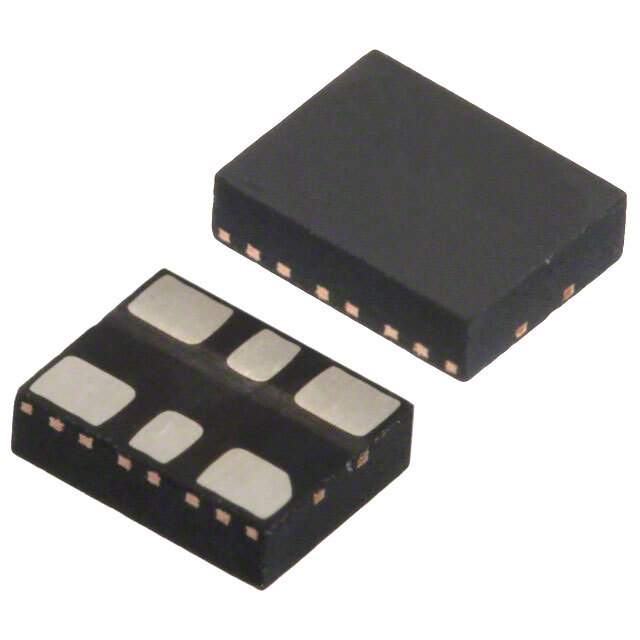

ASEMPHC-100.000MHZ-LR-T Real Image
Same model may have multiple batches, images only for reference.

ASEMPHC-100.000MHZ-LR-T

Part No ASEMPHC-100.000MHZ-LR-T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 100.0000MHZ HCSL SMD / 100 MHz XO (Standard) HCSL Oscillator 2.25V ~ 3.6V Enable/Disable 6-SMD, No Lead
Datasheet
ASEMPHC-100.000MHZ-LR-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ASEMP, Pure Silicon™
Package Tape & Reel
Base Resonator MEMS
Type XO (Standard)
Frequency 100 MHz
Function Enable/Disable
Output HCSL
Voltage - Supply 2.25V ~ 3.6V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 35mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 26mA
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1338081-ASEMPHC-100.000MHZ-LR-T
Ultra Librarian 3D Model Ultra Librarian ASEMPHC-100.000MHZ-LR-T CAD Model

Description

The ASEMPHC-100.000MHZ-LR-T is a crystal oscillator manufactured by Abracon LLC.

  • Series: ASEMP, Pure Silicon™
  • Type: Standard XO
  • Package: Tape and Reel
  • Dimensions: 0.126 inches L x 0.098 inches W
  • Height: 0.035 inches
  • Frequency: 100 MHz
  • Output: HCSL
  • Frequency Stability: ±25ppm
  • Voltage Supply: 2.25V to 3.6V
  • Current Supply (Max): 35mA
