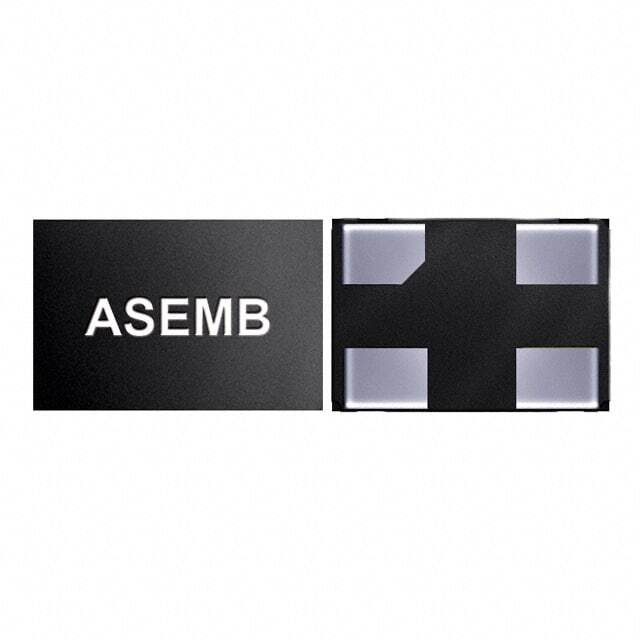

Same model may have multiple batches, images only for reference.
ASEMB-BLANK-XY Abracon LLC
Same model may have multiple batches, images only for reference.

ASEMB-BLANK-XY

Part No ASEMB-BLANK-XY
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC PROG BLANK 1MHZ-150MHZ / XO (Standard) LVCMOS 1 MHz ~ 150 MHz Programmable Oscillator 1.8V ~ 3.3V Standby (Power Down) 4-SMD, No Lead
Datasheet
ASEMB-BLANK-XY Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Programmable Oscillators
Mfr Abracon LLC
Series ASEMB, Pure Silicon™
Package Bulk
Base Resonator MEMS
Type XO (Standard)
Programmable Type Blank (User Must Program)
Available Frequency Range 1 MHz ~ 150 MHz
Function Standby (Power Down)
Output LVCMOS
Voltage - Supply 1.8V ~ 3.3V
Frequency Stability (Total) ±10ppm
Temperature Range - Operating -40°C ~ 105°C
Current - Supply (Max) 16mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 15 µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 535-10970,ASEMBBLANKXY
Standard Package 1
Win Source Part Number 1212393-ASEMB-BLANK-XY
Ultra Librarian 3D Model Ultra Librarian ASEMB-BLANK-XY CAD Model

Description

The ASEMB-BLANK-XY is a programmable oscillator in the Crystals, Oscillators, Resonators category.

  • Series: ASEMB, Pure Silicon™
  • Frequency Stability: ±10ppm
  • Type: Programmable Blank
  • Frequency Range: 1 MHz to 150 MHz
  • Output: LVCMOS
  • Package: 4-SMD, No Lead
  • Height: 0.035 inches (0.90mm)
