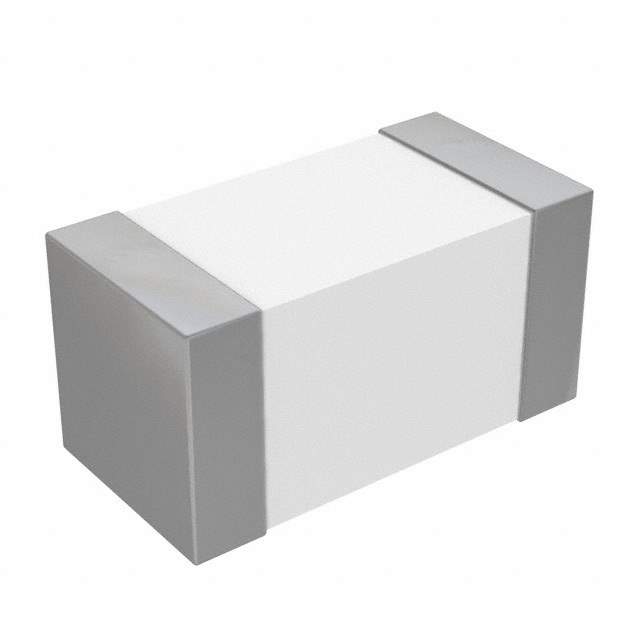

Same model may have multiple batches, images only for reference.

AIMC-0201-3N3S-T

Name: AIMC-0201-3N3S-T
Brand: Abracon LLC
SKU: 1033538
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	AIMC-0201-3N3S-T
Manufacturer	Abracon LLC
Catalog	Fixed Inductors
Description	FIXED IND 3.3NH 200MA 400MOHM SM / 3.3 nH Unshielded Multilayer Inductor 200 mA 400mOhm Max 0201 (0603 Metric)
Datasheet	AIMC-0201-3N3S-T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Abracon LLC
Series	AIMC-0201
Package	Tape & Reel
Type	Multilayer
Material - Core	Ceramic
Inductance	3.3 nH
Tolerance	±0.3nH
Current Rating (Amps)	200 mA
Shielding	Unshielded
DC Resistance (DCR)	400mOhm Max
Q @ Freq	4 @ 100MHz
Frequency - Self Resonant	10GHz
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 MHz
Mounting	SMD (SMT)
Package / Case	0201 (0603 Metric)
Supplier Device Package	0201 (0603 Metric)
Dimension	0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max)	0.014" (0.35mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	535-11493-6,AIMC02013N3ST,AIMC-0201-3N3S-T-ND,535-11493-1,535-11493-2
Standard Package	15,000
Win Source Part Number	1033538-AIMC-0201-3N3S-T
Ultra Librarian 3D Model	Ultra Librarian AIMC-0201-3N3S-T CAD Model

Alternative Products

Description

The AIMC-0201 series from Abracon LLC is a multilayer ceramic inductor with a value of 3.3nH.

Inductance: 3.3nH
Tolerance: ±0.3nH
DC Resistance: 400mOhm max
Package Type: 0201 (0603 metric)
Supplied: tape and reel
Temperature Range: -55°C to 125°C
Category: fixed inductor
ECCN: EAR99
REACH Status: REACH unaffected
