Same model may have multiple batches, images only for reference.

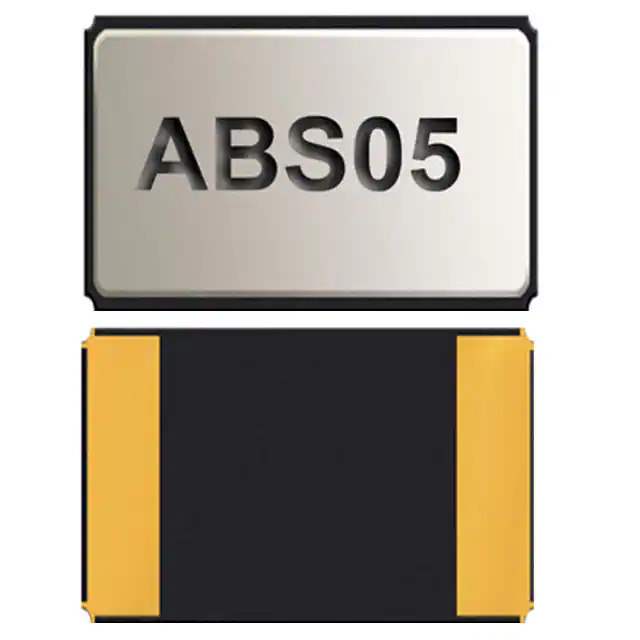

ABS05-32.768KHZ-9-T Real Image
Same model may have multiple batches, images only for reference.

ABS05-32.768KHZ-9-T

Part No ABS05-32.768KHZ-9-T
Manufacturer Abracon LLC
Catalog Oscillators
Description CRYSTAL 32.7680KHZ 9PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Abracon LLC
Series ABS05
Package Tape & Reel
Product Status Active
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 9pF
ESR (Equivalent Series Resistance) 90 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.063" L x 0.039" W (1.60mm x 1.00mm)
Height - Seated (Max) 0.020" (0.50mm)
Standard Package 3,000 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
Win Source Part Number 845079-ABS05-32.768KHZ-9-T
Ultra Librarian 3D Model Ultra Librarian ABS05-32.768KHZ-9-T CAD Model

Description

The ABS05 kHz Crystal is a compact and reliable component for crystal oscillators and resonators.

  • Series: ABS05
  • Mounting Type: Surface Mount
  • Package: Tape and Reel
  • Frequency: 32.768 kHz
  • Load Capacitance: 9pF
  • Manufacturer: Abracon LLC
  • Product Status: Active
  • ECCN: EAR99
  • HTSUS Code: 8541.60.0010
