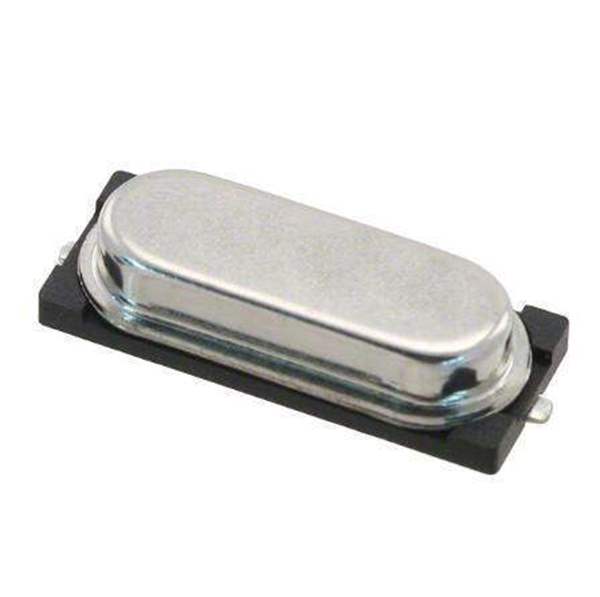

ABLS7M2-13.560MHZ-D2Y-T Abracon LLC
Same model may have multiple batches, images only for reference.

ABLS7M2-13.560MHZ-D2Y-T

Part No ABLS7M2-13.560MHZ-D2Y-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 13.5600MHZ 18PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Abracon LLC
Category Crystals, Oscillators, Resonators Crystals
Part Status Active
Type MHz Crystal
Frequency 13.56 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Win Source Part Number WS1305566-ABLS7M2-13.560MHZ-D2Y-T
Ultra Librarian 3D Model Ultra Librarian ABLS7M2-13.560MHZ-D2Y-T CAD Model

Description

FEATURES：
• Reduced footprint from ABLS (standard HC/49US package) by 50%
• Low profile: 2.0mm max. height
• Suitable for RoHS compliant reflow
• Tight stability & extended temperature options
• High reliability & Cost effective
• Resistance welded metal package
