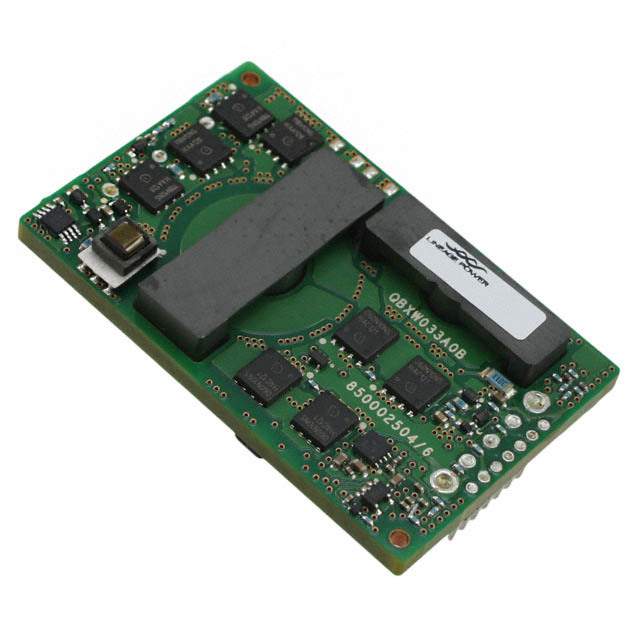

Same model may have multiple batches, images only for reference.

QBDW033A0B41Z

Name: QBDW033A0B41Z
Brand: ABB Embedded Power
SKU: 1350050
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	QBDW033A0B41Z
Manufacturer	ABB Embedded Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 396W / Intermediate Bus Converter, Digital DC DC Converter 1 Output 12V 33A 36V - 75V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	ABB Power Electronics Inc.
Series	Barracuda™ QBDW033A0B (400W)
Package	Tray
Type	Intermediate Bus Converter, Digital
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Current - Output (Max)	33A
Power (Watts)	396 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	95.3%
Mounting Type	Through Hole
Package / Case	8-DIP Module, 1/4 Brick
Size / Dimension	2.30" L x 1.45" W x 0.46" H (58.4mm x 36.8mm x 11.7mm)
Control Features	Enable, Active Low
Base Product Number	QBDW033
Standard Package	24
MSL Level	2A (4 Weeks)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1350050-QBDW033A0B41Z
Ultra Librarian 3D Model	Ultra Librarian QBDW033A0B41Z CAD Model

Alternative Products

Description

The QBDW033A0B41Z is an intermediate bus converter from the Barracuda™ QBDW033A0B (400W) series of DC DC converters.

Power Output: 396W
Current Output: 33A
Voltage Input: 36V to 75V
Voltage Isolation: 2.25kV
Mounting Type: through-hole
Package: 8-DIP module, 1/4 brick
Control Features: remote on/off, OCP, OTP, OVP, and UVLO
Operating Temperature: -40°C to 85°C
Efficiency: 95.3%
