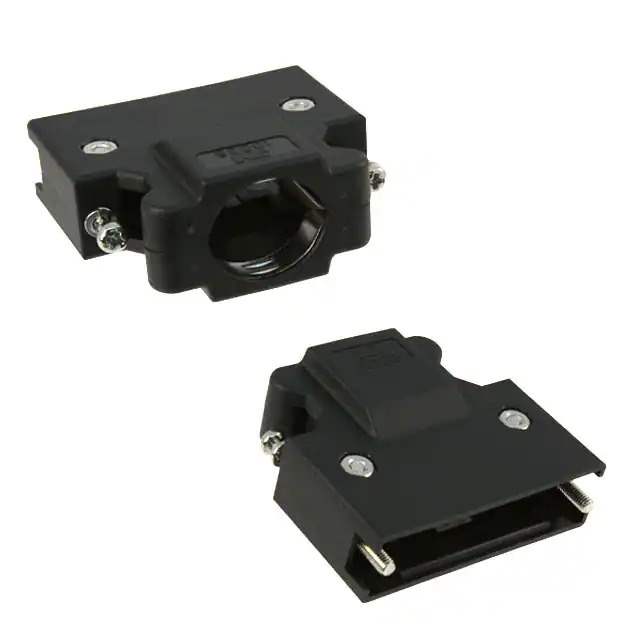

10336-52A0-008 Real Image
Same model may have multiple batches, images only for reference.

10336-52A0-008

Part No 10336-52A0-008
Manufacturer 3M
Catalog D - Sub, D - Shaped Connectors - Backshells, Hoods
Description CONN BACKSHELL 36POS 180DEG BLK / 36 Position Two Piece Backshell Connector Black 180° Unshielded
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub, D-Shaped Connector Backshells, Hoods
Mfr 3M
Series 103
Package Box
Product Status Active
Accessory Type Two Piece Backshell
Number of Positions 36
Cable Type Round
Cable Exit 180°
Shielding Unshielded
Material Polybutylene Terephthalate, Glass Filled
Hardware Assembly Hardware, Strain Relief
Features Mating Screws M2.6
Color Black
Base Product Number 10336
Standard Package 50 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 905043-10336-52A0-008
Ultra Librarian 3D Model Ultra Librarian 10336-52A0-008 CAD Model

Description

The 10336-52A0-008 is a two-piece backshell from the 103 series manufactured by 3M.

  • Series: 103
  • Connector Type: D-Sub and D-Shaped
  • Material: Polybutylene Terephthalate (Glass Filled)
  • Color: Black
  • Cable Exit: 180°
  • Cable Type: Round
  • Features: Assembly Hardware and Strain Relief
  • Package: Box
  • Quantity: 50 pieces
  • Product Status: Active
  • ECCN: EAR99
