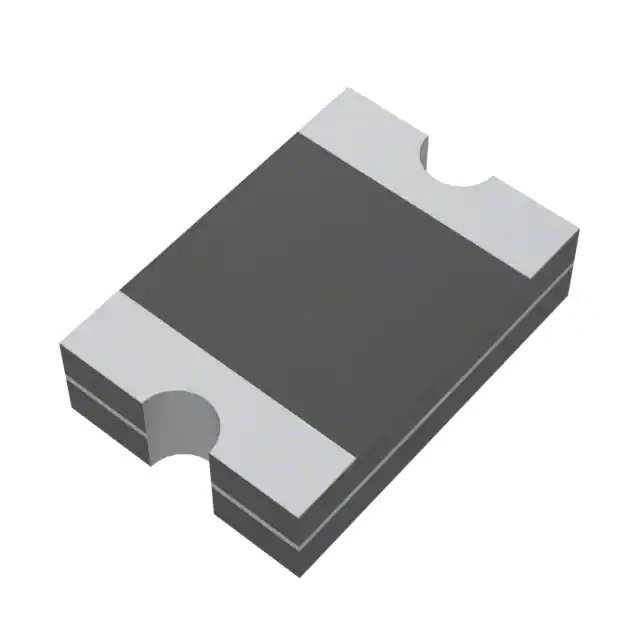

SMD1210B150TFT Yageo
Same model may have multiple batches, images only for reference.

SMD1210B150TFT

Part No SMD1210B150TFT
Manufacturer Yageo
Catalog PTC Resettable Fuses
Description POLYMERIC PTC RESETTABLE FUSE SU / Polymeric PTC Resettable Fuse 6V 1.5 A Ih Surface Mount 1210 (3225 Metric), Concave
Datasheet
SMD1210B150TFT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr YAGEO
Series SMD1210
Package Tape & Reel
Product Status Active
Type Polymeric
Voltage - Max 6V
Current - Hold (Ih) (Max) 1.5 A
Current - Trip (It) 3 A
Current - Max 100 A
Time to Trip 300 ms
Resistance - Initial (Ri) (Min) 30 mOhms
Resistance - Post Trip (R1) (Max) 120 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric), Concave
Size / Dimension 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) -
Thickness (Max) 0.042" (1.07mm)
Lead Spacing -
Approval Agency cUL, TUV, UL
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1361607-SMD1210B150TFT
Ultra Librarian 3D Model Ultra Librarian SMD1210B150TFT CAD Model

Description

The YAGEO 1361607-SMD1210B150TFT is a polymeric PTC resettable fuse designed to protect electronic circuits from overcurrent events.

  • Voltage - Max: 6V
  • Current - Max: 100A
  • Current - Hold (Ih): 1.5A
  • Current - Trip (It): 3A
  • Time to Trip: 300ms
  • Series: SMD1210
  • Mounting Type: Surface Mount
  • Package / Case: 1210, Concave
  • Approvals: cUL, TUV, UL
  • Operating Temperature: -40°C ~ 85°C
