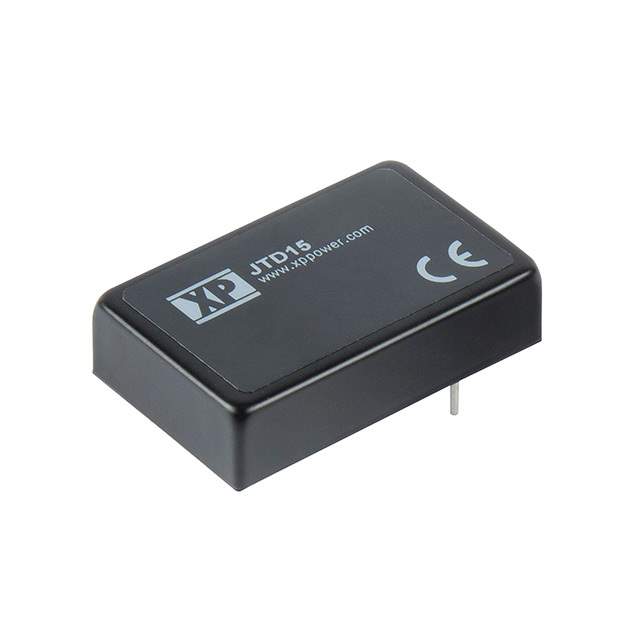

Same model may have multiple batches, images only for reference.

JTD1524S3V3

Get a Quote

Part No	JTD1524S3V3
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 15W / Isolated Module DC DC Converter 1 Output 3.3V 3A 9V - 36V Input
Datasheet	JTD1524S3V3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	JTD15 (15W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	3.3V
Current - Output (Max)	3A
Power (Watts)	15 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 100°C (With Derating)
Efficiency	80%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	1.60" L x 1.00" W x 0.41" H (40.6mm x 25.4mm x 10.4mm)
Supplier Device Package	6-DIP
Standard Number	62368-1
Base Product Number	JTD1524
Standard Package	10
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1350216-JTD1524S3V3
Ultra Librarian 3D Model	Ultra Librarian JTD1524S3V3 CAD Model

Alternative Products

Description

The XP Power JTD1524S3V3 is a 15W isolated module DC-DC converter designed for ITE (Commercial) applications.

Power: 15W
Application: ITE (Commercial)
Voltage Isolation: 3 kV
Efficiency: 80%
Package Type: Through Hole
Supplier Device Package: 6-DIP
Features: Remote On/Off, OCP, OVP, SCP
Maximum Output Current: 3A
Input Voltage: 9V to 36V
Voltage Output: 3.3V
Operating Temperature: -40°C to 100°C (with derating)
Dimensions: 1.60" L x 1.00" W x 0.41" H (40.6mm x 25.4mm x 10.4mm)
