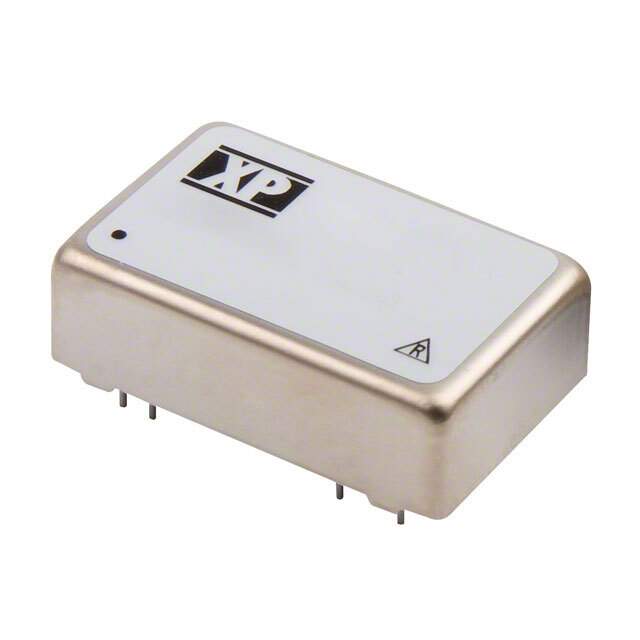

Same model may have multiple batches, images only for reference.

JTC0424S3V3

Name: JTC0424S3V3
Brand: XP Power
SKU: 1340270
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	JTC0424S3V3
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 4W / Isolated Module DC DC Converter 1 Output 3.3V 1.2A 9V - 36V Input
Datasheet	JTC0424S3V3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	JTC (4W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	3.3V
Current - Output (Max)	1.2A
Power (Watts)	4 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	75%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 7 Leads
Size / Dimension	1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)
Base Product Number	JTC0424
Standard Package	10
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1340270-JTC0424S3V3
Ultra Librarian 3D Model	Ultra Librarian JTC0424S3V3 CAD Model

Alternative Products

Description

The XP Power JTC0424S3V3 is a compact surface-mountable isolated module DC-DC converter from the JTC series and manufactured by XP Power, designed for ITE (Commercial) applications.

Series: JTC
Power Rating: 4W
Efficiency: 75%
Output Voltage: 3.3V
Maximum Output Current: 1.2A
Input Voltage Range: 9V to 36V
Isolation Voltage: 1.5 kV
Protection: Over Current Protection (SCP)
Packaging: Tube
Mounting Type: Through-Hole
Package: 24-DIP Module, 7 Leads
