Same model may have multiple batches, images only for reference.

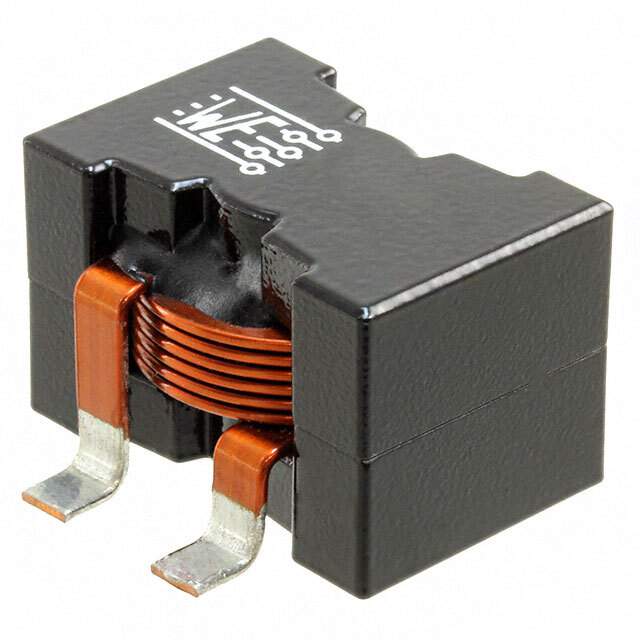

7443643300 Real Image
Same model may have multiple batches, images only for reference.

7443643300

Part No 7443643300
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 33UH 30A 2.4 MOHM SMD / 33 μH Shielded Drum Core, Wirewound Inductor 30 A 2.4mOhm Nonstandard
Datasheet
7443643300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-HCF
Package Tray
Product Status Active
Type Drum Core, Wirewound
Material - Core Manganese Zinc Ferrite (MnZn)
Inductance 33 µH
Tolerance ±15%
Current Rating (Amps) 30 A
Current - Saturation (Isat) 11.5A
Shielding Shielded
DC Resistance (DCR) 2.4mOhm
Frequency - Self Resonant 7MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 2818
Size / Dimension 1.122" L x 0.768" W (28.50mm x 19.50mm)
Height - Seated (Max) 0.728" (18.50mm)
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 907911-7443643300
Ultra Librarian 3D Model Ultra Librarian 7443643300 CAD Model

Description

The WE-HCF series inductors from Wurth Electronics Inc are high-quality fixed inductors designed for use in various electronic applications.

  • Design: Shielded
  • Type: Drum core, wirewound
  • Size/Dimension: 1.122" L x 0.768" W (28.50mm x 19.50mm)
  • Inductance: 33 µH
  • Maximum Seated Height: 0.728" (18.50mm)
  • Tolerance: ±15%
  • Temperature Range: -40°C to 125°C
  • Mounting: Surface mountable
  • Package: Nonstandard
  • Current Rating: 30 A
  • DC Resistance: 2.4mOhm
  • Core Material: Manganese zinc ferrite (MnZn)
  • Self-Resonant Frequency: 7MHz
  • Package Quantity: 20 pcs
  • Status: Active
