1795000000 Weidmuller – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

1795000000

Part No 1795000000
Manufacturer Weidmuller
Catalog Headers, Plugs and Sockets

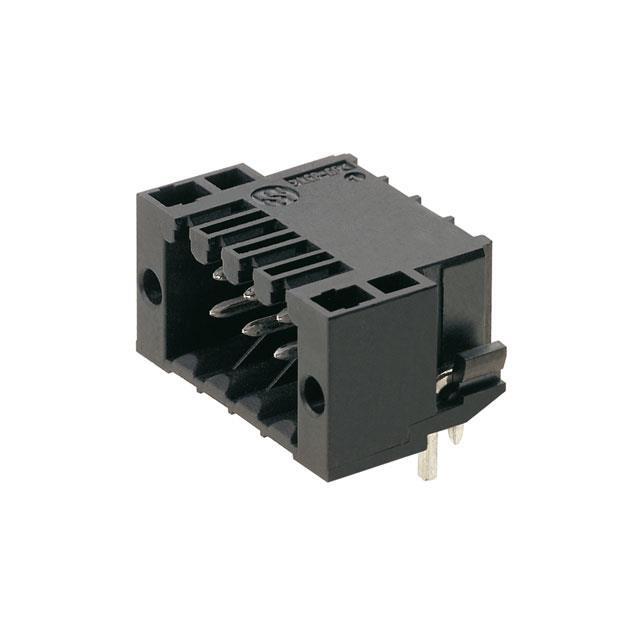

Description 34 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Weidmüller
Series Omnimate S2L
Packaging Bulk
Part Status Last Time Buy
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 34
Positions Per Level 17
Number of Levels 2
Pitch 0.138" (3.50mm)
Header Orientation 90°, Right Angle
Termination Style Solder
Mounting Type Through Hole
Current - IEC 10A
Voltage - IEC 160 V
Current - UL 10 A
Voltage - UL 150 V
Color Black
Temperature Range - Operating -50°C ~ 100°C
Contact Mating Finish Tin
Features Mating Flange, Solder Retention
Material Flammability Rating UL94 V-0
Ingress Protection IP10
Contact Material Copper Alloy
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Tail Length 0.126" (3.20mm)
Insulation Height 0.452" (11.48mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1480061-1795000000
Ultra Librarian 3D Model Ultra Librarian 1795000000 CAD Model
