Same model may have multiple batches, images only for reference.

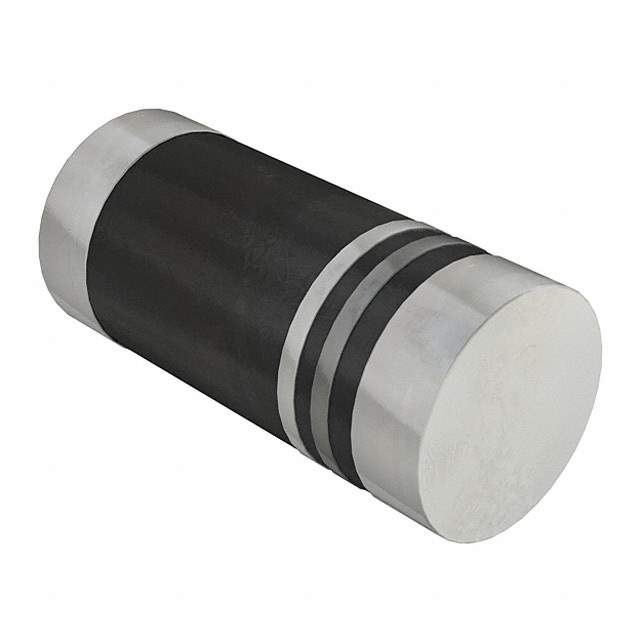

RGL34K-E3/98 Real Image
Same model may have multiple batches, images only for reference.

RGL34K-E3/98

Part No RGL34K-E3/98
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 800V 500MA DO213 / Rectifier Diode Switching 800V 0.5A 250ns 2-Pin DO-213AA T/R
Datasheet
RGL34K-E3/98 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Series SUPERECTIFIER
Packaging Reel package
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 800V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Maximum) @ If 1.3V @ 500mA
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 250ns
Current - Reverse Leakage @ Vr 5μA @ 800V
Capacitance @ Vr, F 4pF @ 4V, 1MHz
Mounting SMD
Package DO-213AA (Glass)
Manufacturer Package DO-213AA (GL34)
Operating Temperature - Junction -65°C ~ 175°C
Win Source Part Number 793188-RGL34K-E3/98
Popularity Medium
Supply and Demand Status Limited
Family Name RGL34K
Introduction Date January 10, 2001
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian RGL34K-E3/98 CAD Model

Description

The Vishay Semiconductor Diodes Division SUPERECTIFIER is a fast recovery SMD diode.

  • Current Average Rectified (Io): 500mA
  • Reverse Recovery Time (trr): 250ns
  • Current Reverse Leakage: 5μA @ 800V
  • Capacitance: 4pF @ 4V, 1MHz
  • Operating Temperature Range: -65°C to 175°C
  • Package: DO-213AA (GL34)
  • Packaging: Reel
  • Forward Voltage (Vf): 1.3V @ 500mA
  • Maximum Voltage Reverse (Vr): 800V
