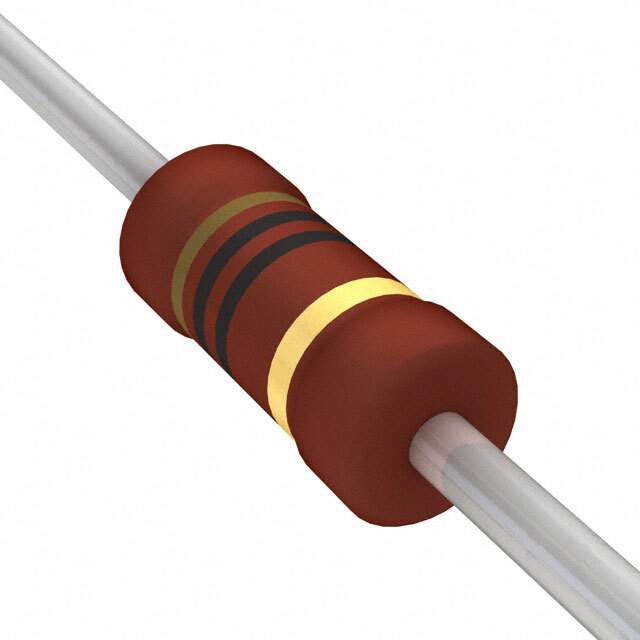

Same model may have multiple batches, images only for reference.

PR03000201009JAC00

Name: PR03000201009JAC00
Brand: Vishay
SKU: 1130404
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PR03000201009JAC00
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	RES 10 OHM 3W 5% AXIAL / 10 Ohms ±5% 3W Through Hole Resistor Axial Flame Retardant Coating, Fusible, Safety Metal Film
Datasheet	PR03000201009JAC00 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Through Hole Resistors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	PR03
Package	Cut Tape (CT),Tape & Box (TB)
Resistance	10 Ohms
Tolerance	±5%
Power (Watts)	3W
Composition	Metal Film
Features	Flame Retardant Coating, Fusible, Safety
Temperature Coefficient	±250ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	Axial
Supplier Device Package	Axial
Dimension	0.205" Dia x 0.657" L (5.20mm x 16.70mm)
Number of Terminations	2
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0090
Other Names	PPC10W-3JCT,BC10W-3JTB-ND,BC10W-3JTBINACTIVE,BC10W-3JTB-NDR,2322 195 14109,BC10W-3JCT-ND,PPC10W-3JTB-NDR,5093NW10R00JA8AFX,PPC10W-3JCT-NDR,5093NW10R00J,BC10W-3JCT,BC10W-3JCTINACTIVE,232219514109,PPC10W-3JTB,5093NW10R00JBC,BC10W-3JTB
Standard Package	500
Win Source Part Number	1130404-PR03000201009JAC00
Ultra Librarian 3D Model	Ultra Librarian PR03000201009JAC00 CAD Model

Description

The PR03000201009JAC00 is a through hole resistor from Vishay.

Resistance: 10 Ohms
Features: Flame Retardant Coating, Fusible
Standard Package: 500
RoHS Compliant: Yes
