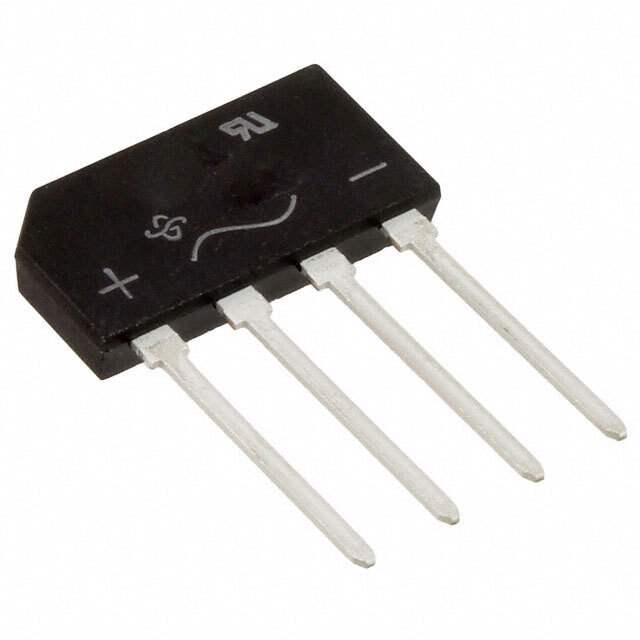

GBLA06-E3/45 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1V @ 4A
Current - Reverse Leakage @ Vr 5μA @ 600V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package GBL
Win Source Part Number 016663-GBLA06-E3/45
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian GBLA06-E3/45 CAD Model

Description

The Vishay Diodes and Rectifiers - Single is a high-quality discrete semiconductor component known for its reliability.

  • Win Source Part Number: 016663-GBLA06-E3/45
  • Technology: Standard
  • Diode Type: Single-Phase
  • Average Rectified Current: 3A
  • Maximum Forward Voltage: 1V @ 4A
  • Maximum Peak Reverse Voltage: 600V
  • Reverse Leakage Current: 5μA @ 600V
  • Temperature Range: -55°C to 150°C (TJ)
  • Case/Package: GBL
