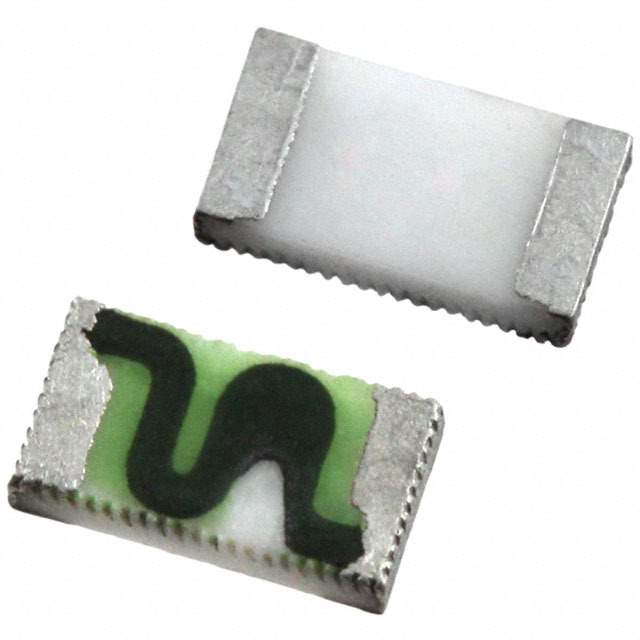

CRHV1206AF100MFKE5 Real Image
Same model may have multiple batches, images only for reference.

CRHV1206AF100MFKE5

Part No CRHV1206AF100MFKE5
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 100M OHM 1% 0.3W 1206 / 100 MOhms ±1% 0.3W Chip Resistor 1206 (3216 Metric) High Voltage Thick Film
Datasheet
CRHV1206AF100MFKE5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Vishay Dale
Packaging Reel - TR
Resistance 100 mOhms
Tolerance ±1%
Power (Watts) 0.3W
Composition Thick Film
Features High Voltage
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 1206 (3216 Metric)
Supplier Device Package 1206
Size / Dimension 0.125" L x 0.063" W (3.18mm x 1.60mm)
Height - Seated (Max) 0.027" (0.69mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number CRHV100MATR,CRHV100MACT-ND,3579-CRHV1206AF100MFKE5DKR,CRHV100MATR-ND,3579-CRHV1206AF100MFKE5CT,3579-CRHV1206AF100MFKE5TR,CRHV100MACT,CRHV100MADKR,CRHV100MADKR-ND
Standard Package 500
Win Source Part Number 1329214-CRHV1206AF100MFKE5
Ultra Librarian 3D Model Ultra Librarian CRHV1206AF100MFKE5 CAD Model

Description

The CRHV1206AF100MFKE5 is a chip resistor designed for surface mount circuits.

  • Package: reel - TR
  • Power: 0.3W
  • Resistance: 100 mOhms
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Operating Temperature: -55°C to 155°C
  • Supplied by: Vishay Dale
  • Base Product Number: 1206
