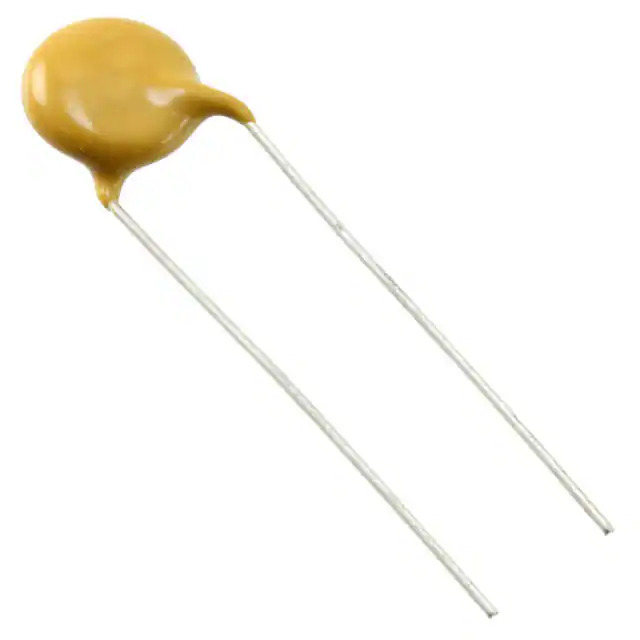

Same model may have multiple batches, images only for reference.

AY2222M35Y5US63L7

Name: AY2222M35Y5US63L7
Brand: Vishay
SKU: 1360538
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AY2222M35Y5US63L7
Manufacturer	Vishay
Catalog	Ceramic Capacitors
Description	CAP CER 2200PF 440VAC Y5U RADIAL / 2200 pF ±20% 440VAC Ceramic Capacitor Y5U (E) Radial, Disc
Datasheet	AY2222M35Y5US63L7 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Ceramic Capacitors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	AY2
Package	Bulk
Product Status	Active
Capacitance	2200 pF
Tolerance	±20%
Voltage - Rated	440VAC
Temperature Coefficient	Y5U (E)
Temperature Range - Operating	-55°C ~ 125°C
Features	-
Ratings	AEC-Q200, X1, Y2
Applications	Safety, Automotive
Failure Rate	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.354" Dia (9.00mm)
Height - Seated (Max)	0.472" (12.00mm)
Thickness (Max)	-
Lead Spacing	0.295" (7.50mm)
Lead Style	Straight
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.23.0060
Win Source Part Number	1360538-AY2222M35Y5US63L7
Ultra Librarian 3D Model	Ultra Librarian AY2222M35Y5US63L7 CAD Model

Alternative Products

Description

The AY2 is a ceramic capacitor with a capacitance of 2200 pF and manufactured by Vishay Beyschlag/Draloric/BC Components.

Capacitance: 2200 pF
Voltage Rating: 440VAC
Application: Safety, Automotive
Temperature Range: -55°C to 125°C
Package Type: Radial, Disc
Mounting Type: Through Hole
Lead Spacing: 0.295" (7.50mm)
Size/Dimension: 0.354" Dia (9.00mm)
Height Seated (Max): 0.472" (12.00mm)
Status: Active
REACH: Unaffected
ECCN: EAR99
Temperature Coefficient: Y5U (E)
Tolerance: ±20%
