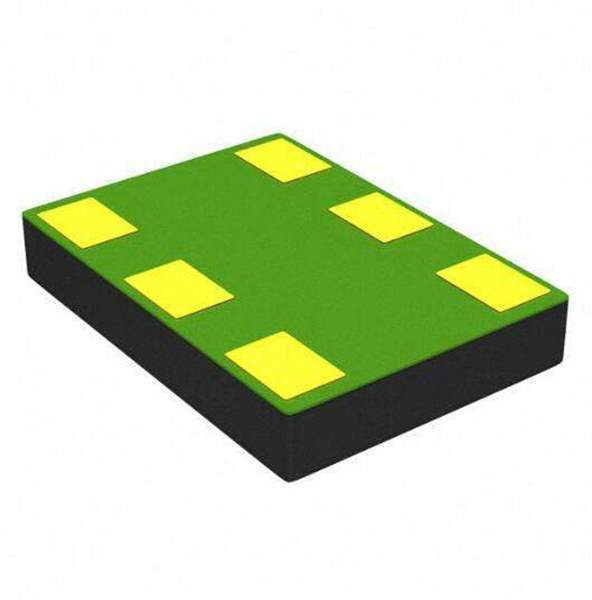

LMK61E0-156M25SIAR Texas Instruments
Same model may have multiple batches, images only for reference.

LMK61E0-156M25SIAR

Part No LMK61E0-156M25SIAR
Manufacturer Texas Instruments
Catalog Oscillators
Description SILIC OSC XO 156.2500MHZ LVPECL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Texas Instruments
Category Crystals, Oscillators, Resonators Oscillators
Packaging  Tape & Reel (TR)
Part Status Active
Frequency 156.25 MHz
Function Enable/Disable
Output LVPECL
Operating Temperature -40°C ~ 85°C
Current - Supply (Max) 208mA
Mounting Type Surface Mount
Package / Case 6-SMD Module
Win Source Part Number WS1222452-LMK61E0-156M25SIAR
Ultra Librarian 3D Model Ultra Librarian LMK61E0-156M25SIAR CAD Model

Description

The LMK61XX is an ultra-low jitter oscillator that generates a commonly used reference clock. The device is pre-programmed in factory to support any reference clock frequency; supported output formats are LVPECL up to 1 GHz, LVDS up to 900 MHz, and HCSL up to 400 MHz. Internal power conditioning provide excellent power supply ripple rejection (PSRR), reducing the cost and complexity of the power delivery network. The device operates from a single 3.3 V ± 5% supply.
