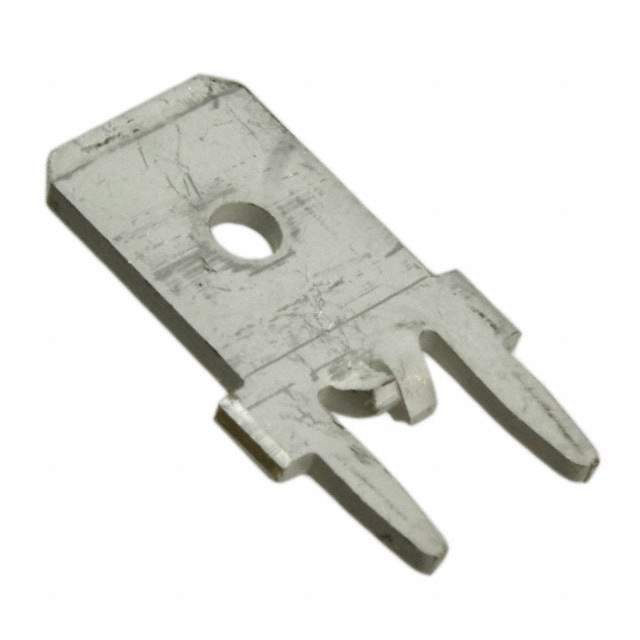

63849-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Bulk
Terminal Type Standard
Gender Male
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.312" (7.92mm)
Length - Overall 0.552" (14.02mm)
Termination Solder
Insulation Non-Insulated
Mounting Type Through Hole
Contact Material Brass
Contact Finish Tin
Base Product Number 63849
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names -63849-1-CSI,-63849-1-SI,-63849-1-LSI,638491
Standard Package 2,000
Win Source Part Number 963169-63849-1
Ultra Librarian 3D Model Ultra Librarian 63849-1 CAD Model

Description

The Faston is a series of connectors that fall under the category of terminals - quick connects and quick disconnect connectors. The 963169-63849-1 is a male connector with a standard terminal type and a tab width of 0.250 inches (6.35mm).

  • Terminal Type: Standard
  • Tab Width: 0.250 inches (6.35mm)
  • Overall Length: 0.552 inches (14.02mm)
  • Tab Thickness: 0.032 inches (0.81mm)
  • Tab Length: 0.312 inches (7.92mm)
  • Insulation: Non-Insulated
  • Mounting Type: Through-Hole
  • Packaging: Bulk
  • ECCN: EAR99
