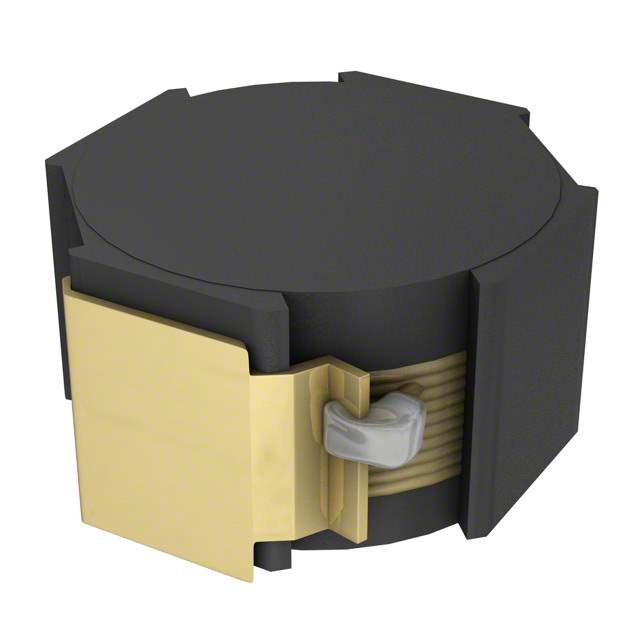

VLF12060T-101M1R9 Real Image
Same model may have multiple batches, images only for reference.

VLF12060T-101M1R9

Part No VLF12060T-101M1R9
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description SMD Inductors(Coils) For Power Line(Wound, Magnetic Shielded)
Datasheet
VLF12060T-101M1R9 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series VLF
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 100μH
Tolerance ±20%
Current Rating 1.9A
Current - Saturation 1.9A
Shielding Shielded
DC Resistance (DCR) 152 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.472" L x 0.461" W (12.00mm x 11.70mm)
Height - Seated (Maximum) 0.236" (6.00mm)
Manufacturer Homepage www.tdk.com
Win Source Part Number 757935-VLF12060T-101M1R9
Popularity Medium
Supply and Demand Status Limited
Family Name VLF
Introduction Date May 20, 2002
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian VLF12060T-101M1R9 CAD Model

Description

This TDK Corporation wirewound inductor has a 100μH inductance and is part of the VLF series.

  • Current Rating: 1.9A
  • Maximum Seated Height: 0.236" (6.00mm)
  • Shielding: Yes
  • Core Material: Ferrite
  • Tolerance: ±20%
  • Mounting Type: SMD
  • Supply and Demand Status: Limited
  • Status: Obsolete
  • DC Resistance (DCR): 152 mOhm Max
  • Test Frequency: 100kHz
  • Size: 0.472" L x 0.461" W (12.00mm x 11.70mm)
  • Packaging: Reel
