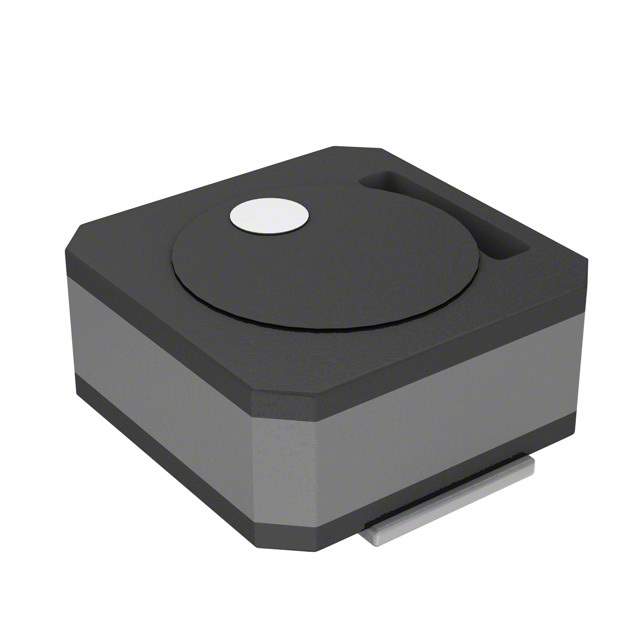

VLCF4020T-4R7N1R2 Real Image
Same model may have multiple batches, images only for reference.

VLCF4020T-4R7N1R2

Part No VLCF4020T-4R7N1R2
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1.24A 98 MOHM
Datasheet
VLCF4020T-4R7N1R2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±30%
Current Rating 1.24A
Current - Saturation 1.24A
DC Resistance (DCR) 98 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 1117101-VLCF4020T-4R7N1R2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLCF4020T-4R7N1R2 CAD Model

Description

The TDK Corporation VLCF4020T-4R7N1R2 is a wirewound inductor that is used in various electronic applications. The supply and demand status of the product is balanced.

  • Manufacturer: TDK Corporation
  • Type: Wirewound Inductor
  • Supply and Demand Status: Balanced
  • Inductance: 4.7μH
  • Current Rating: 1.24A
  • DC Resistance: 98 mOhm Max
  • Frequency Self-Resonant: -
  • Packaging: Reel - TR
